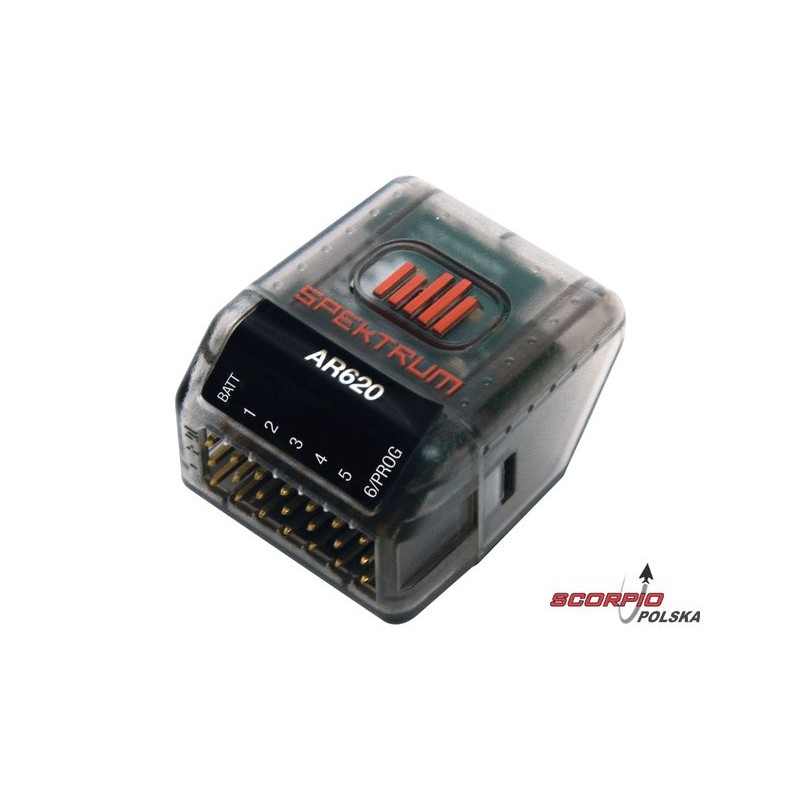

SPEKTRUM RECEIVER AR620 / 6 CH (SPMA620)

Characteristic:

New 6-channel miniature RC receiverSpektrumAR620 with DSMX / DSM2 modulation in the 2.4 GHz band with full range. Completely new design, mainly a new integrated antenna in the housing and integrated telemetry. No more damaged antennas! You can easily pair with the transmitter with a large button, no pairing connector is needed. Weight only 8 g.

Integrated antenna

New receiver conceptSpektrumAR620 lowers the risk of damaging the antenna, now the antenna is simply hidden in the receiver housing. The antenna is part of the printed circuit board of the electronics, its shape has been optimized so that the receiverRCSpektrumAR620 with slightly the same or even better range compared to the standard design of antennas!

Simple button pairing

You don't need the pairing connector anymore!To pair, just press the button with the logoSpektrumon the top of the receiver. The activation of pairing can be triggered both when the device is turned on and when the button is pressed after turning on the power. This is convenient where pressing the button and connecting the power supply at the same time is very difficult to do.

Integrated telemetry

ReceiverSpektrumAR620 has integrated telemetry,similar to the AR636 receiver. Information on signal quality (lost frames, number of Hold states, signal strength) and receiver voltage are transferred. Due to the low transmission power of telemetry, its range is limited to about 100 to 150 m.

Key features of the receiverSpektrumAR620

• Thanks to the integrated antenna, it is not likely to be damaged in a crash or during normal operation
• Thanks to the cooperation with Texas Instruments, the range of the receiver is the same or better than that of the AR400 receiver.
• Perfect for models of airplanes made of foam (EPP, EPS, Z-Foam) or wooden models covered with foil
• Miniature sizes
• Easy pairing at the touch of a button
• The receiver cannot be used on carbon laminate hulls - these materials suppress or significantly change the distribution of the electromagnetic field!

Parameters:

• Application: Airplanes

• Band: 2.4GHz

• Modulation: DSM2 / DSMX

• Number of channels: 6

• Supply voltage: 3.5-9V

• Length: 32 mm

• Width: 26.4 mm

• Height: 18 mm

• Weight: 8g
