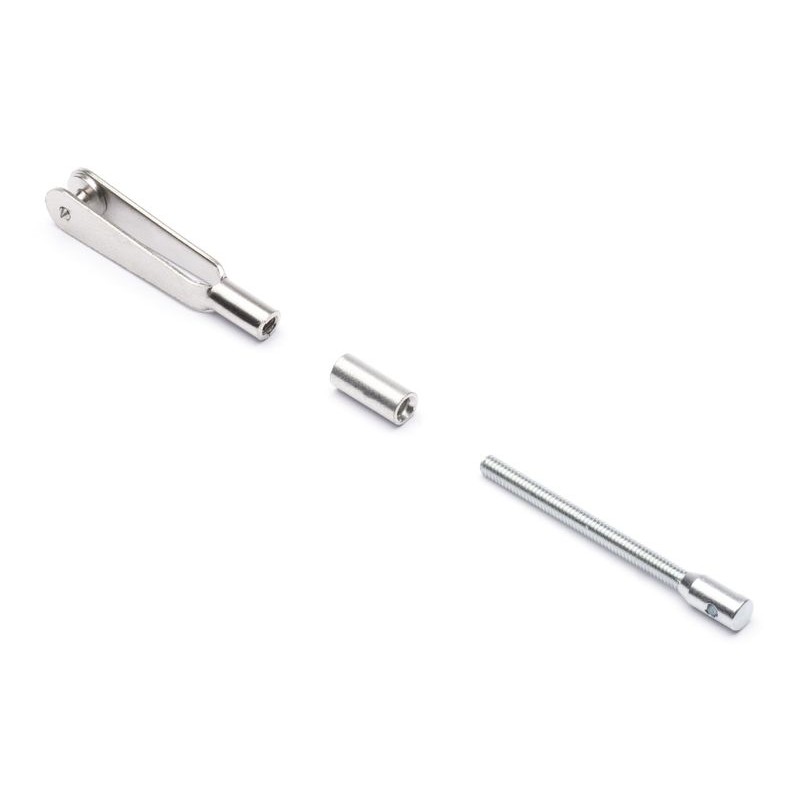

SNAP FOR M2 PUSHER + TENSION / 1 KAVAN SET (KAV6252)

Metal M2 snap for servo and rudder levers with a threaded tip (tensioner), a sleeve and a lock nut - used for the drive with cables in the PUSH - PULL system.

Snap:

• pin outer diameter: 1.54 mm
• overall length: 26 mm
• thread for the tip of the pusher: M2

plus threaded end - cable tensioner (dimensions):

• overall length: 30 mm
• threaded length: 21 mm
• thread: M2
• cable hole: approx. 0.6 mm

plus spacer sleeve :

• length: 7.8 mm
• outer diameter: 3.4 mm
• inside diameter: approx. 2.5 mm

plus the M2 lock nut

• original Kavan
