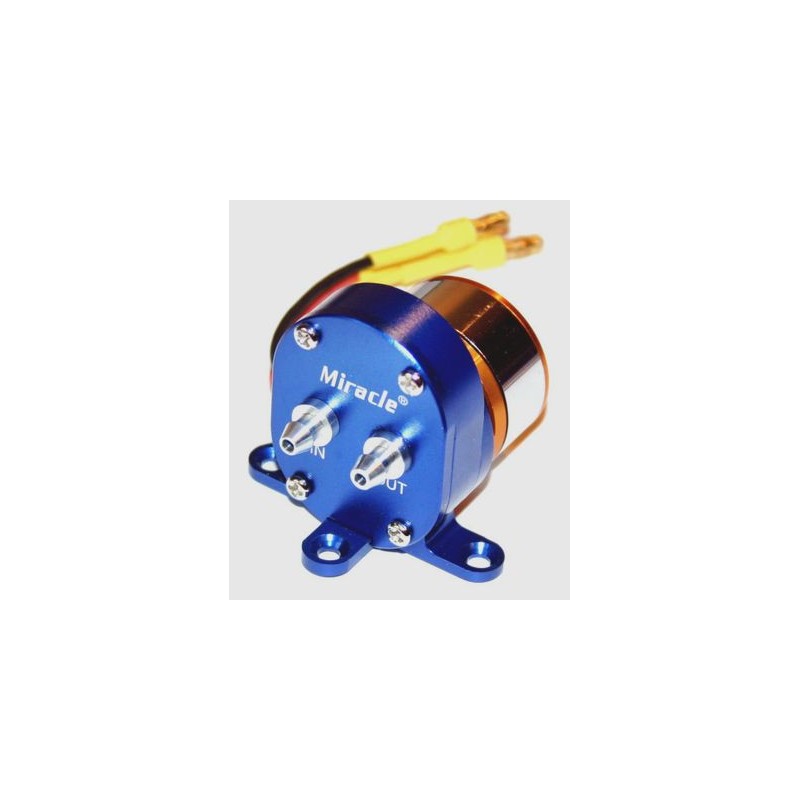

MIRACLE SMOKE PUMP BLUE (K-013)

Pump designed for smoke fluid, not for methanol and petrol.

The pump housing is made of 6061 aluminum CNC machines and anodized in blue or red colors. It has fuel-resistant, glass-fiber reinforced, nylon gears and tight, high-speed and oil-resistant Japanese seals which ensure reliable, stable and trouble-free operation over a long period of time. The drive is a three-phase motor controlled by a 10A regulator - the solution provides smooth speed control and does not generate sparks.

Proper connection is shown in a short instruction on one of the attached pictures.

Power supply 7.2V (6 NiMH cells) or 7.4V (2 Li-pol cells) or 6.6V (2 LiFe cells). The pump and regulator cables are terminated with 3.5mm gold connectors, which ensure quick connection. On the supply side, the controller has a JST socket. The pump housing has 3 mounting holes (screws are included).

Technical data:

• dimensions: 47 x 40 x 44.5 mm.
• spigot outer diameter: 4.9 mm.
• internal diameter of the nozzles: 2 mm.
• weight: 77 g.
• recommended smoke fluid tank: 500-600cm³
