MULDENTAL (58863)

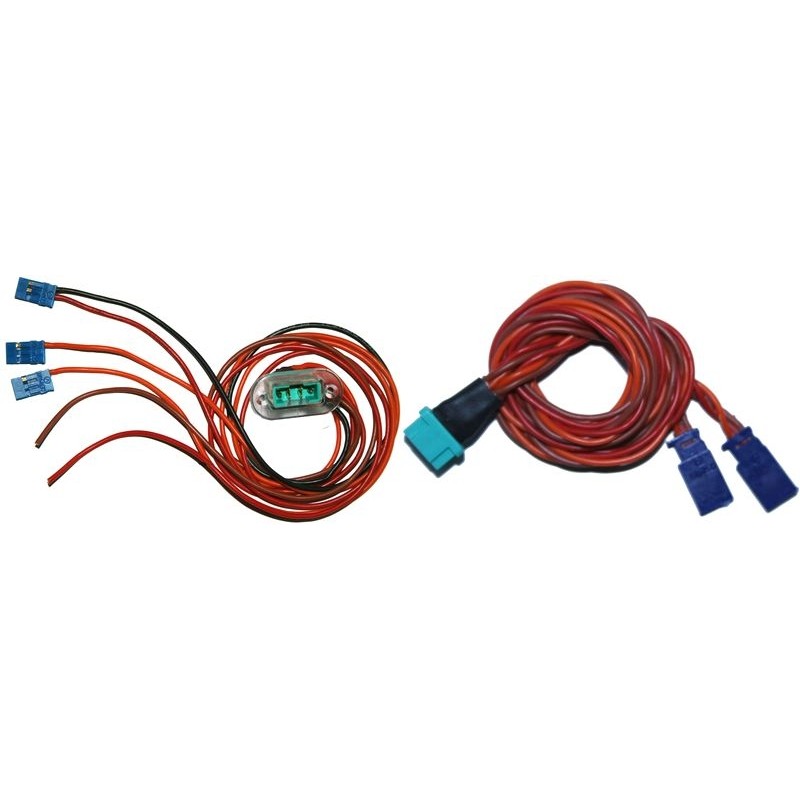

Extension cord with plug and MPX socket total length 1m division 50cm / 50cm can be used to build detachable connections fuselage wing for 2 servos on one side three servo plugs (1 red / black power supply) two signal plugs (only yellow wire) plus unpaid red power cables and black). on the other, two sockets (male plugs for servos) futaba / graupner / JR system. The cable allows to separate the power supply in such a way that the servo current does not flow through the receiver when using powerful digital servos. Wire thickness 0.5mm2

Technical data:

• silicone cables with a cross-section of 0.5 mm2 - length on one side 50 cm
• MPX "male" connector in a housing for assembly, with a "female" connector, JR / Graupner type
• MPX "female" connector terminated with a "male" Futaba connector
• original Muldental - Made in Germany
