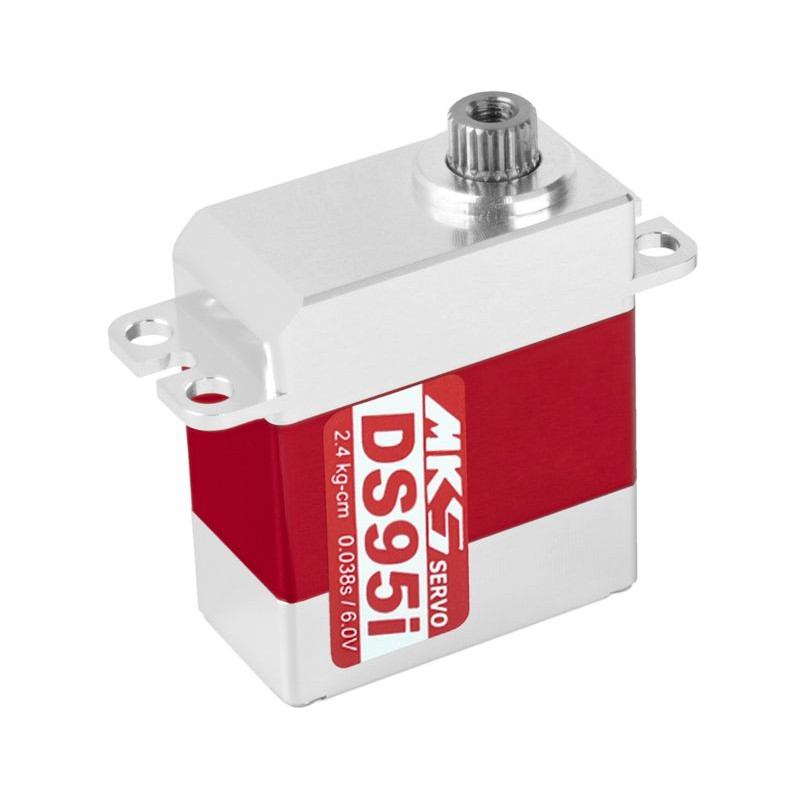

MKS SERWO DS95i DIGITAL (2.4kg - 0.038s/60°)

Ultra-fast narrow band (760 µs) digital micro rotor with metal gears and output shaft mounted on two ball bearings. Ideal for 380-420 miniature helicopter trim rotors, compatible with most 760 µs gyros and flybarless devices. To ensure ideal cooling even under heavy loads, the servo is housed in an aluminum case. The servo is not programmable.

Specifications:

• Torque at 4.8 V - 1.92 kg
• Torque at 6 V - 2.4 kg
• Speed at 4.8 V - 0.047 s / 60 degrees
• Speed at 6 V - 0.038 s / 60 degrees
• Control pulse width: 760 µs
• Repetition rate: 560 Hz
• Ball bearings: x2
• Gear (pinions): metal

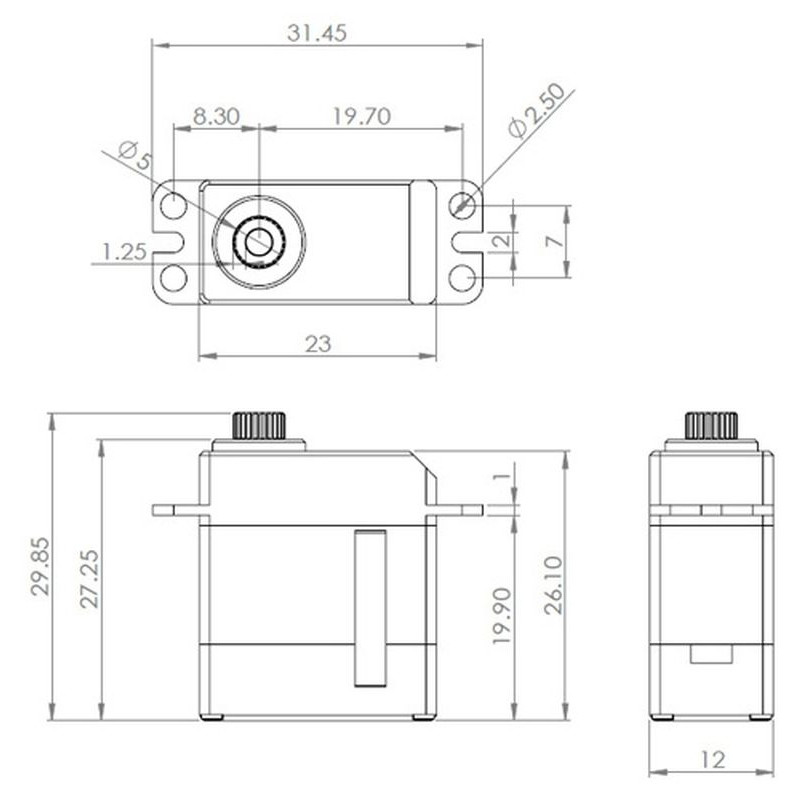

• Dimensions (length x width x height): 23 x 12 x 27.25 mm
• Weight: 21.21 g
• Motor type: coreless

*Follow the instruction manual included with the product
