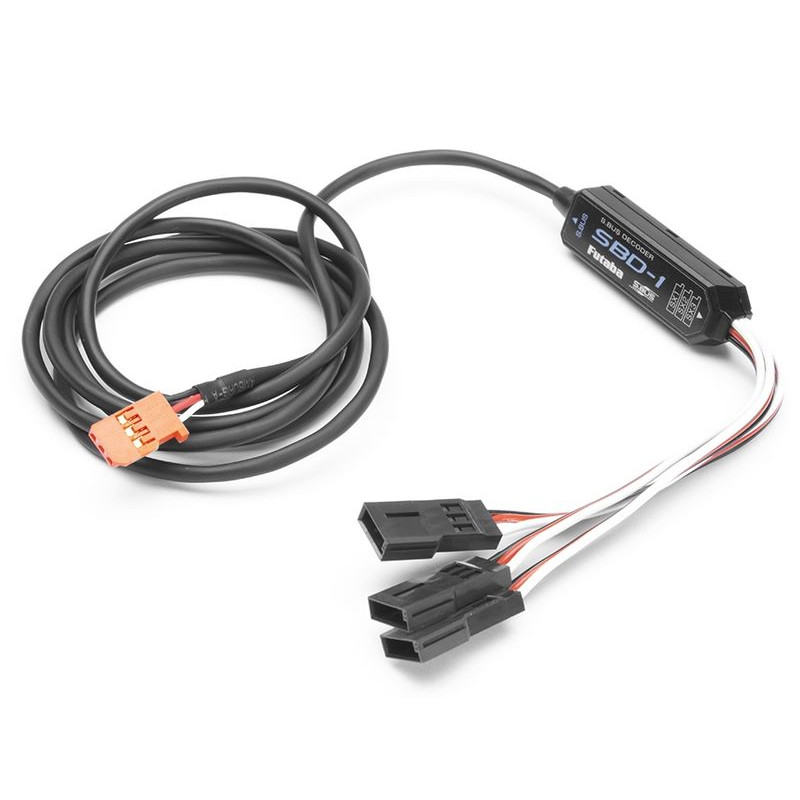

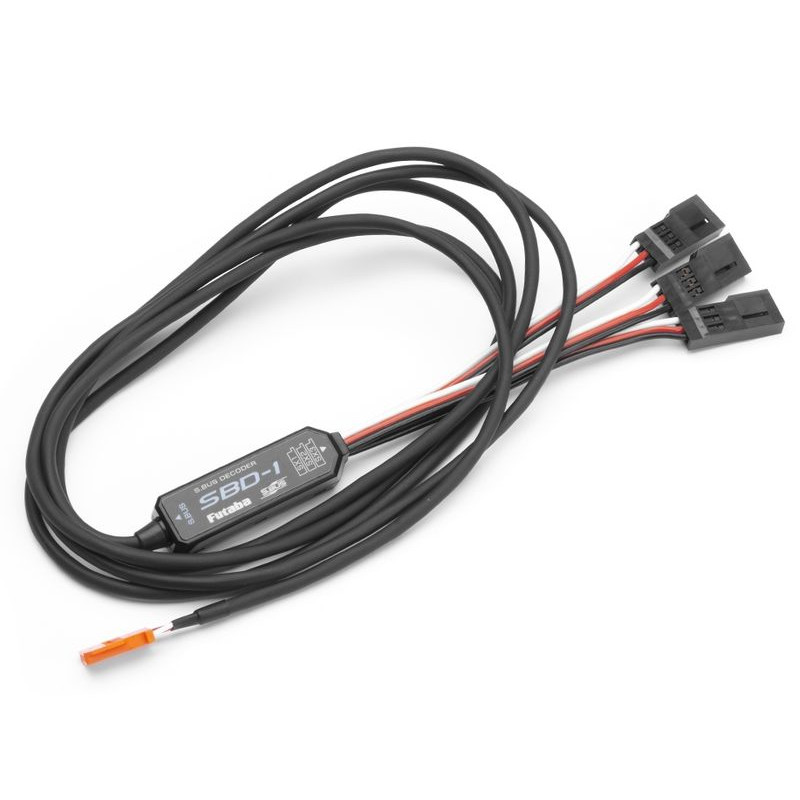

FUTABA SBUS dekoder SBD-1 / 1100 mm

S-BUS cable decoder for connecting up to three classic servos to the S-BUS serial bus, suitable for analog and digital servos with standard 4.8-6.0 V (4-5 NiMH) power supply. Cannot be used for S-BUS2.

Individual SBD-1 outputs can be assigned any channel numbers, so that connected classic servos will respond to the control signal of the channel. Channel numbers can be assigned to the decoder outputs using:

• SBC-1 channel programmer S.BUS
• CIU-3 or CIU-2 USB programmer with PC tool
• futaba transmitter to set the S:BUS server

When programming the decoder, you use the setup button to gradually select individual decoder outputs, and then assign the desired channels to the programming devices. The operation of the decoder is indicated by an LED.

Using the decoder: The input of the SBD-1 is connected to the S.BUS port of the receiver (or to a hub connected to the S.BUS port), and the outputs are connected to classic servos (analog and digital). It is also possible to connect an S.BUS servo; in this case, the S.BUS servo will normally operate on the channel set for the given SBD-1 output, and not on the channel stored in the servo's memory.

Technical data:

• Power supply (rated voltage) [V]: 4,8 - 6
• Length with cables [mm]: 1100
• Length [mm]: 41,8
• Width [mm]: 12,3
• Height [mm]: 8,4

*Follow the instruction manual included with the product.
