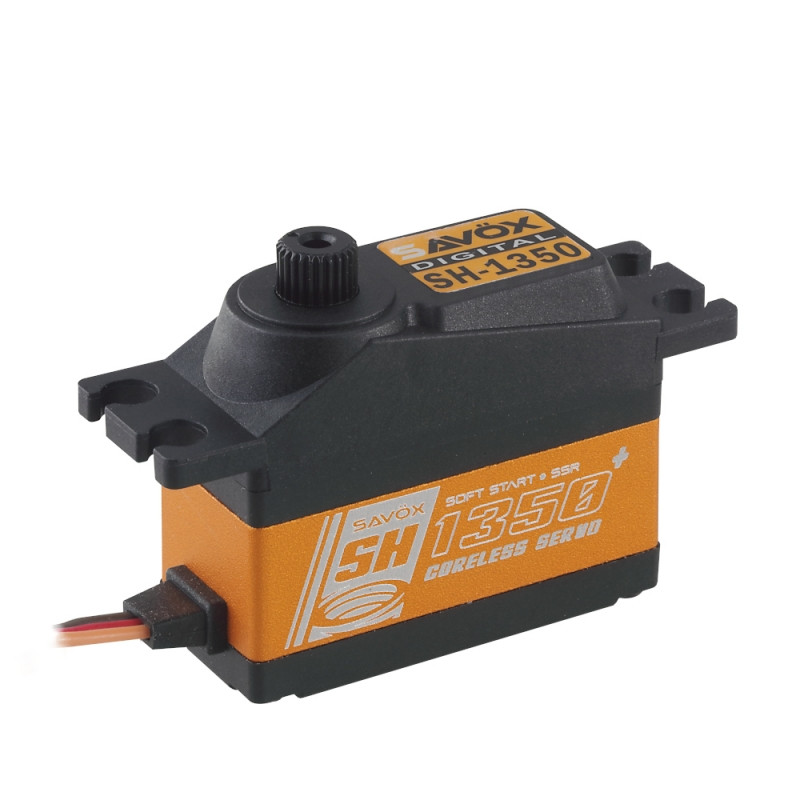

SAVOX SERWO SH-1350MG+ DIGITAL (4.6kg-0.11s/60°)

High-quality digital servo from the renowned Savox company.

Characteristics:

• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision)
• SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

Specifications:

• Torque at 4.8 V - 3.7 kg
• Torque at 6.0 V - 4.6 kg
• Speed at 4.8 V - 0.13 s / 60 degrees
• Speed at 6.0 V - 0.11 s / 60 degrees
• Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
• Bearings: BB
• Gear (gears): plastic
• Output gear: 25 teeth
• Weight: 26 g
• Working range: 110° (1000 → 2000 µs)
• Neutral position: 1500 µs
• Pulse width range: 800 → 2200 µs
• Maximum range: approximately 154° (800 → 2200 µs)
• Refresh rate: 333 Hz
• Motor type: coreless

*Follow the instruction manual included with the product
