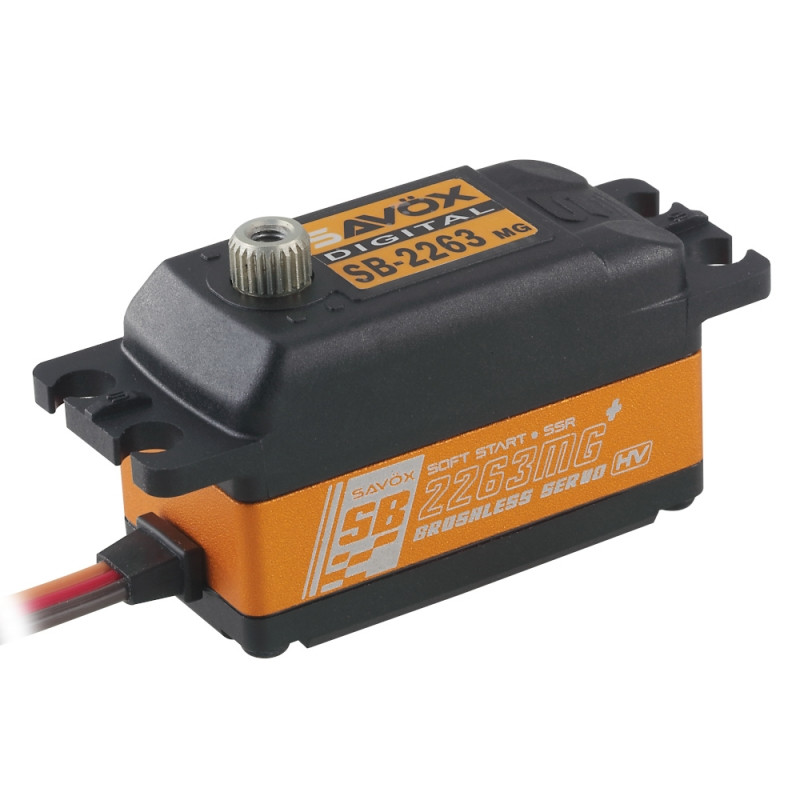

SAVOX SERWO SB-2263MG+ DIGITAL (10kg-0.076s/60°) low-profile HiVolt BRUSHLES

High-quality digital servo from the renowned Savox company.

Characteristics:

• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision)
• SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

Specifications:

• Torque at 4.8 V - 8.0 kg
• Torque at 6.0 V - 10.0 kg
• Speed at 4.8 V - 0.10 s / 60 degrees
• Speed at 6.0 V - 0.076 s / 60 degrees
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Bearings: BB
• Gear (gears): metal
• Output gear: 25 teeth
• Weight: 26 g
• Working range: 100° (1,000 → 2,000 µs)
• Neutral position: 1,500 µs
• Pulse width range: 800 → 2,200 µs
• Maximum range: approximately 130° (900 → 2,100 µs)
• Refresh rate: 333 Hz
• Motor type: AC - brushless

*Follow the instruction manual included with the product
