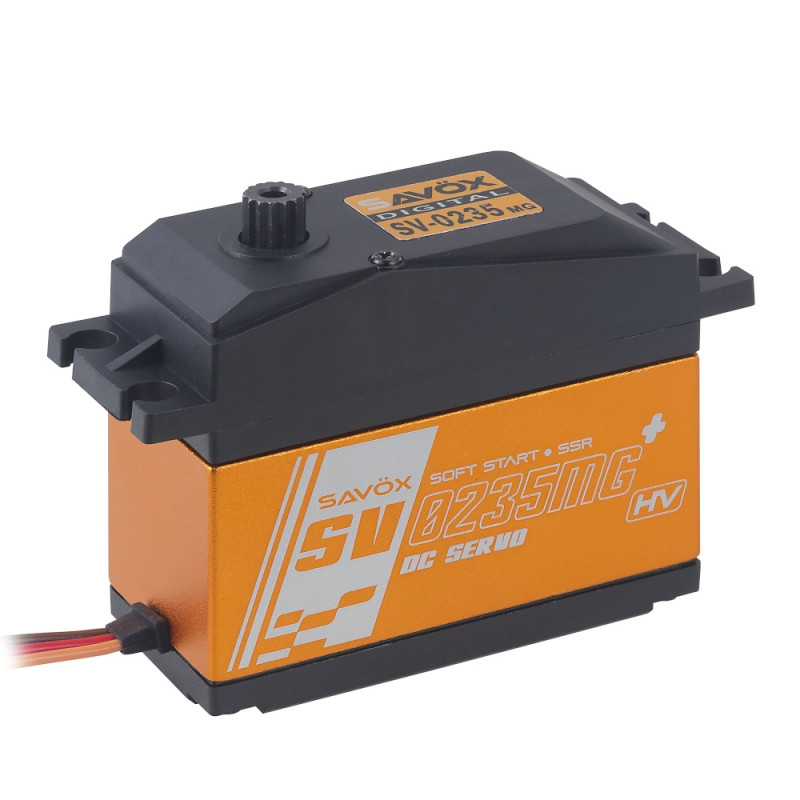

SAVOX servo SV-0235MG+ DIGITAL (35kg-0.15s/60°) HiVolt

High-quality digital servo from the renowned Savox company.

Characteristics:

• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision)
• SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

Specifications:

• Torque at 6 V - 28 kg
• Torque at 7.4 V - 35 kg
• Speed at 6 V - 0.18 s / 60 degrees
• Speed at 7.4 V - 0.15 s / 60 degrees
• Dimensions L x W x H (mm): 65.8 x 30 x 59.1
• Bearings: BB
• Gear (cogs): metal
• Output gear: 15 teeth
• Weight: 200 g
• Working range: 100° (1000 → 2000 µs)
• Neutral position: 1500 µs
• Pulse width range: 800 → 2200 µs
• Maximum range: approximately 130° (900 → 2100 µs)
• Refresh rate: 333 Hz
• Motor type: DC

*Follow the instruction manual included with the product.
