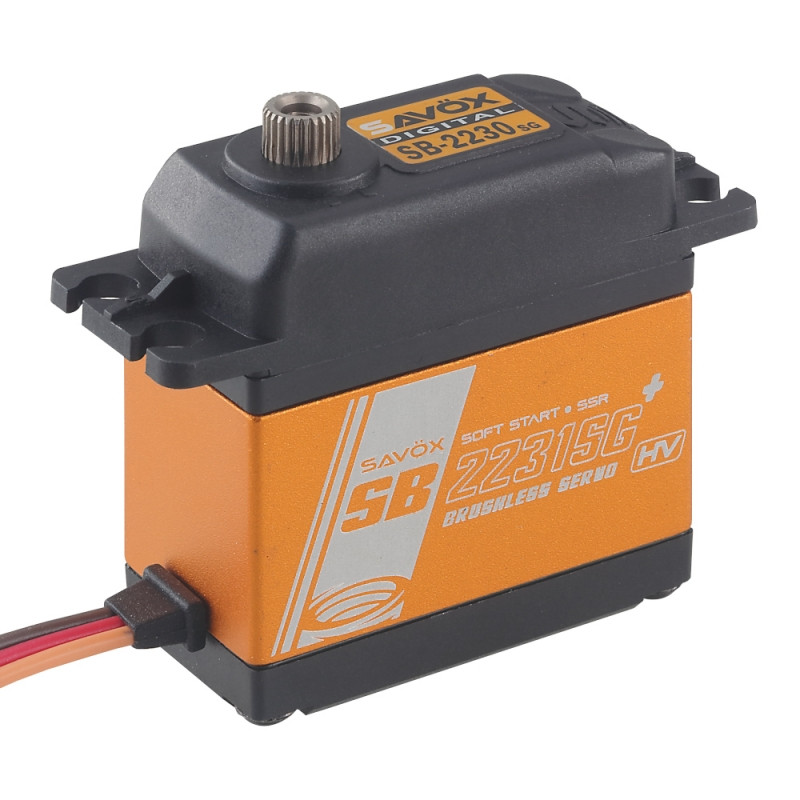

SAVOX SERWO SB-2231SG+ DIGITAL (40kg-0.10s/60°) HiVolt BRUSHLESS

High-quality digital servo from the renowned Savox company.

Characteristics:

• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision)
• SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

Here is the Savox SB-2231SG+ HiVolt digital servo, which combines state-of-the-art technology with very high 12-bit (4096) resolution. The servo is equipped with an AC motor and steel gears.

Specifications:

• Torque at 6 V - 32 kg
• Torque at 7.4 V - 40 kg
• Torque at 8.4 V - 45 kg
• Speed at 6 V - 0.14 s / 60 degrees
• Speed at 7.4 V - 0.10 s / 60 degrees
• Speed at 8.4 V - 0.09 s / 60 degrees
• Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
• Bearings: x 2 BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Weight: 84 g
• Refresh rate: 333 Hz
• Motor type: AC

*Follow the instruction manual included with the product
