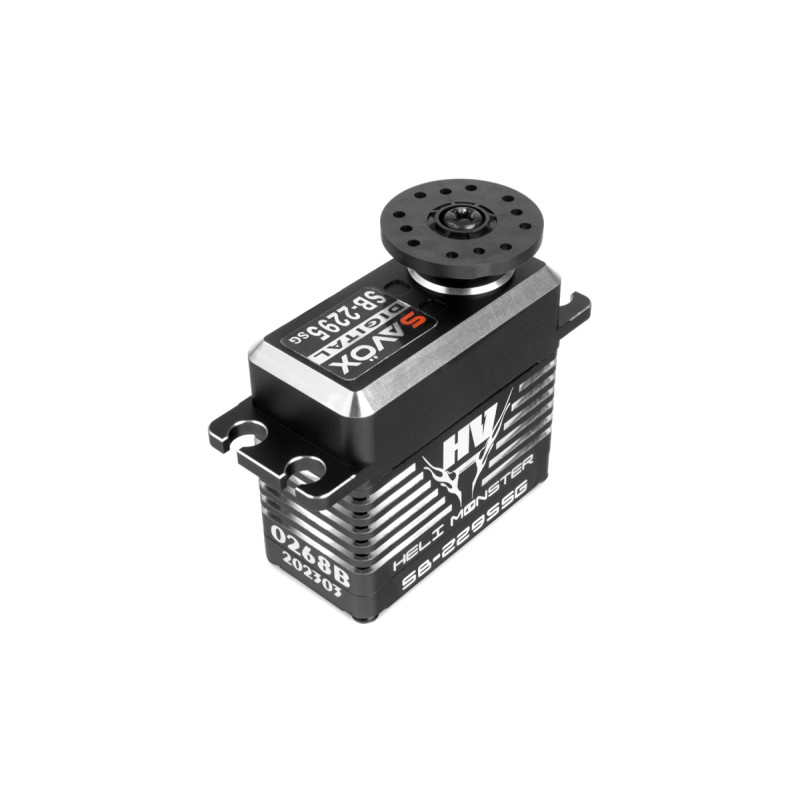

SAVOX SERWO SB-2295SG DIGITAL HiVolt (BRUSHLESS)

The SAVÖX SB-229X servo is a completely new patented technology developed by SAVÖX/TRICORE.

The servo features a much larger AC motor, which not only provides high power and speed, but also optimally dissipates heat thanks to its aluminum housing. Thanks to the new motor and gearbox concept, it was possible to add a third ball bearing to the servo, improving accuracy and reliability.

SAVöX SB-229X servo: that's 50% more power, speed, longer life, stability and precision. Simply ideal for demanding pilots or drivers of RC models, boats, helicopters or airplanes.

SAVöX SB-229X is also a gem of DESIGN in your model thanks to its black anodized all-aluminum housing along with silicone cables.

Features:

• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum transmission speed and precision)
• SOFT START : Soft start (protects the servo and rudder control mechanism when the on-board electronics are engaged)
• Housing made entirely of aluminum
• Unique steel gears

Specifications:

• Torque / force at 6.0 V - 22.0 kg
• Torque / force at 7.4 V - 32.0 kg
• Torque/force at 8.4 V - 45.0 kg
• Speed at 6.0 V - 0.085 s/60 degrees
• Speed at 7.4 V - 0.06 s/60 degrees
• Speed at 8.4 V - 0.05 s/60 degrees

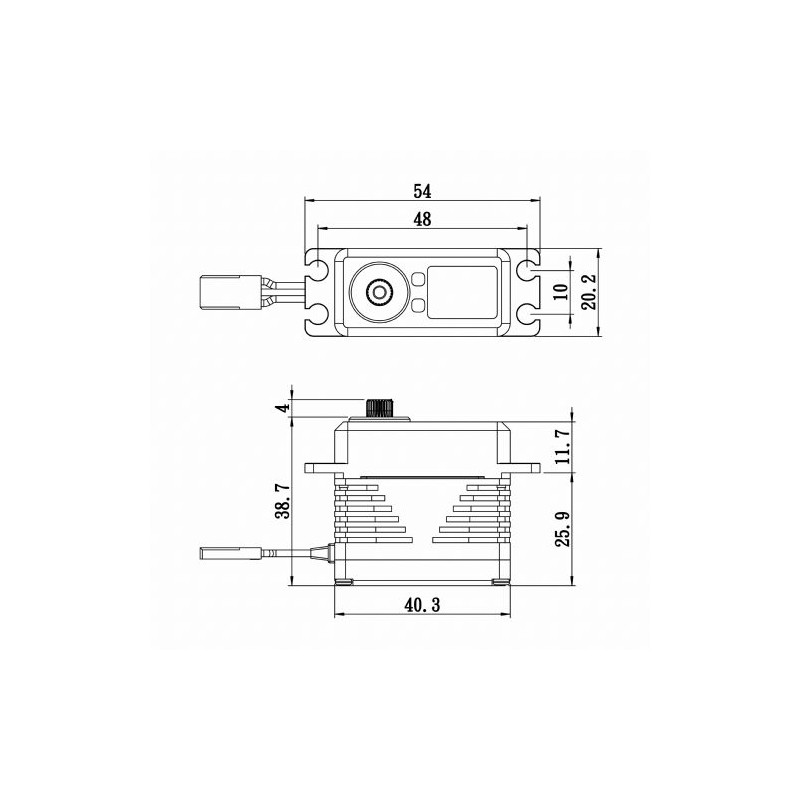

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Operating voltage 4.8-8.4 V (LiPo kit up to 2 s HV)
• Weight: 81g
• Cable length: 300 +/- 5mm
• Output shaft: 25 teeth
• Bearings: BB
• Operating range: 100° (1000 → 2000 µs)
• Neutral position: 1500 µs
• Pulse width range: 800 → 2200 µs
• Maximum range: approximately 130° (900 → 2100 µs)
• Refresh rate: 333 Hz
• Motor type: AC

*Follow the instruction manual included with the product
