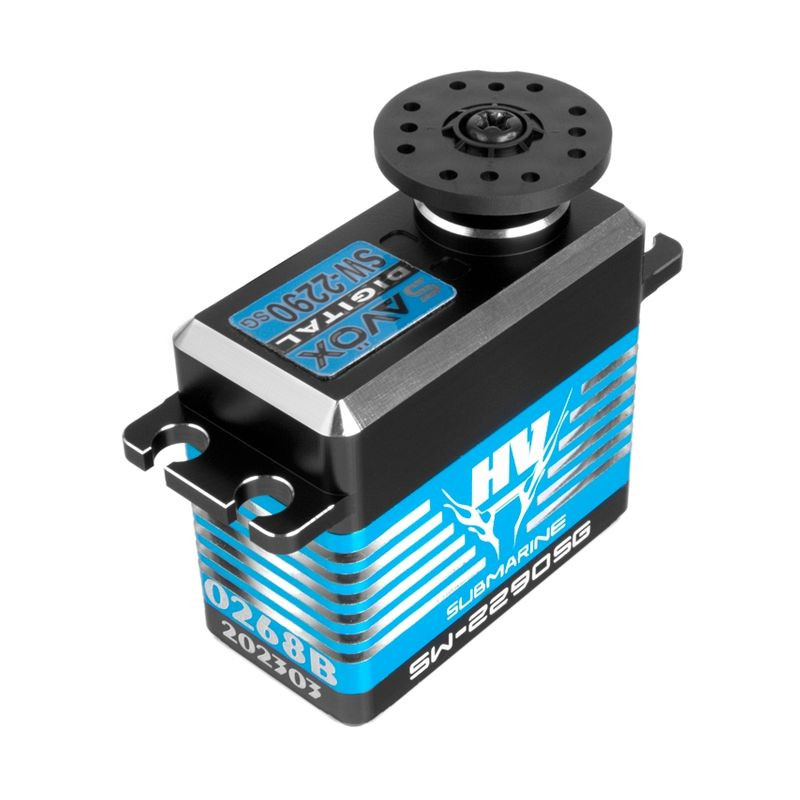

SAVOX SERWO SW-2290SG WATERPROOF DIGITAL HiVolt

High quality digital servo from the renowned Savox company.

SAVÖX SW-2290 servo is a brand new patented technology developed by SAVÖX/TRICORE

The AC motor is built directly into the aluminum housing of the servo. In this way, it was possible to incorporate a much larger motor, which not only provides high power and speed, but also dissipates heat optimally. Thanks to the new motor and gearbox composition concept, it was possible to add a third ball bearing to the servo, which improves accuracy and reliability.

SAVöX SW-2290 servo: that's 35% more power, speed, longer life, stability and precision.

SAVöX SW-2290 is also a jewel of DESIGN in your model with its black/blue anodized all-aluminum housing/servobox equipped with steel gears and silicone-coated servo cable cover , which is standard on SW-2290 servos. In addition, it is waterproof and meets IP67 standard

SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 for maximum speed and transmission precision)

Characteristics:

Technical data:

• Torque at 6 V - 45 kg
• Torque at 7.4 V - 55 kg
• Torque at 8.4 V - 70 kg
• Speed at 6 V - 0.16 s / 60 degrees
• Speed at 7.4 V - 0.13 s / 60 degrees
• Speed at 8.4 V - 0.11 s / 60 degrees
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81 g
• Bearings: 3 x BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Motor: AC

*Follow the enclosed instruction manual.
