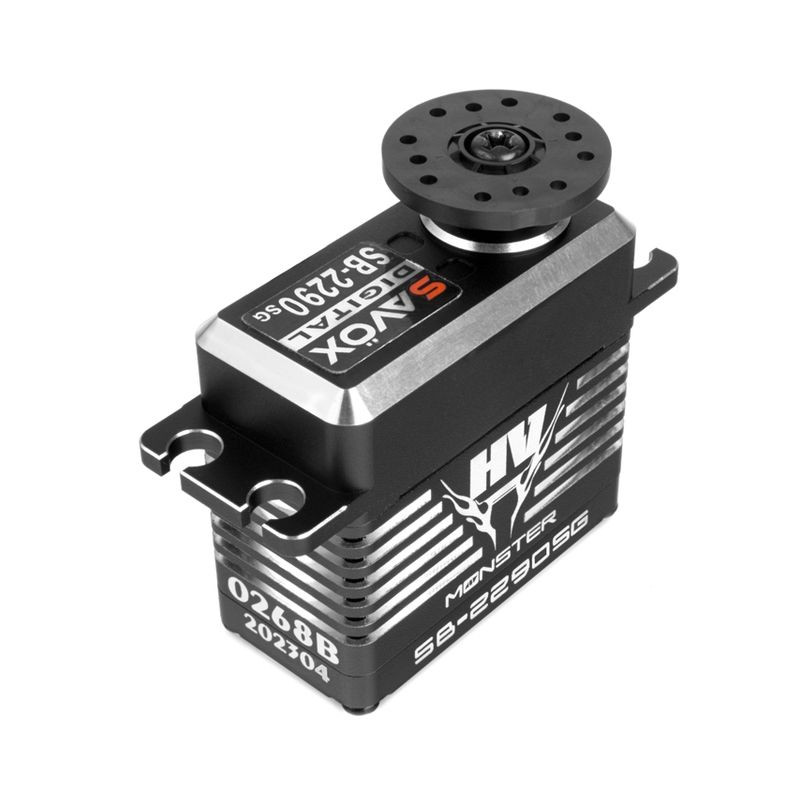

SAVOX SERWO SB-2290SG DIGITAL HiVolt (BRUSHLESS)

High quality digital servo from the renowned Savox company.

SAVÖX SB-2290 servo is a brand new patented technology developed by SAVÖX/TRICORE

The AC motor is built directly into the aluminum housing of the servo. In this way, it was possible to incorporate a much larger motor, which not only provides high power and speed, but also dissipates heat optimally. Thanks to the new motor and gearbox composition concept, it was possible to add a third ball bearing to the servo, which improves accuracy and reliability.

SAVöX SB-2290 servo: that's 50% more power, speed, longer life, stability and precision.

The SAVöX SB-2290 is also the jewel of DESIGN in your model with its fully black anodized aluminum housing / servo equipped with steel gears and silicone servo cable cover, which is standard on SB-2290 servos.

Features:

• Metal gearing ensures durability and long life.
• Aluminum housing allows for lower operating temperature.
• SOFT START: Soft start (protects the servo and control mechanism when the on-board electronics are engaged).
• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 for maximum speed and transmission precision).
• motor type: coreless motor (Coreless)
• The SAVöX SB-229X is also a jewel of DESIGN in your model with its fully black anodized aluminum housing / servo equipped with steel gears and silicone servo cable cover, which is standard on SB-229X servos.

Specifications:

• Torque at 6 V - 45 kg
• Torque at 7.4 V - 55 kg
• Torque at 8.4 V - 70 kg
• Speed at 6 V - 0.16 s / 60 degrees
• Speed at 7.4 V - 0.13 s / 60 degrees
• Speed at 8.4 V - 0.11 s / 60 degrees

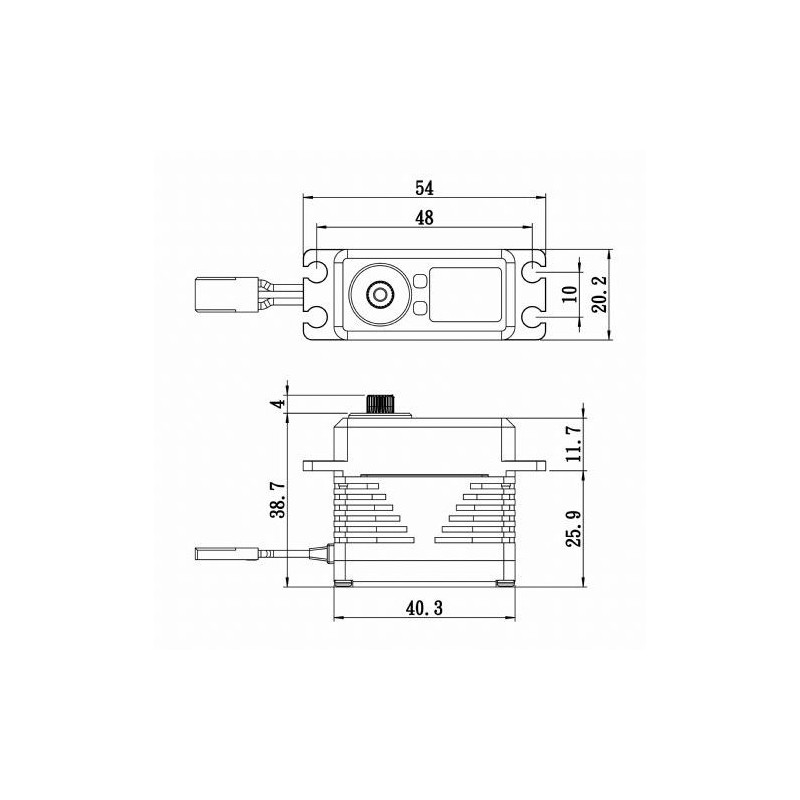

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Bearings: 3 x BB
• Gear (gears): metal
• Output gear: 25 teeth
• Weight: 81 g
• AC brushless motor

For more information and technical data, visit the manufacturer's website.

*Follow the instructions included with the product.
