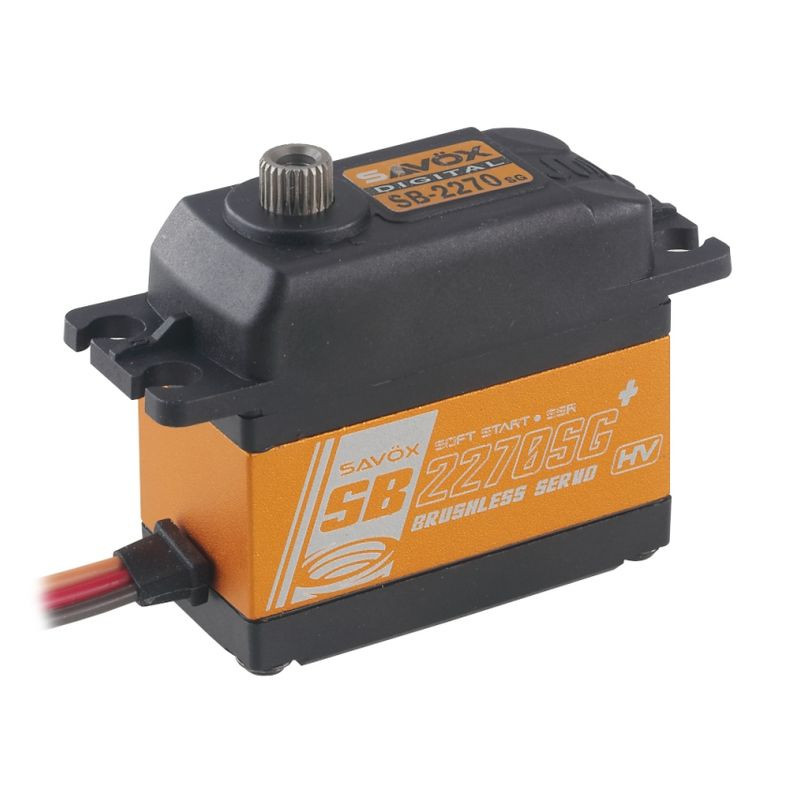

SAVOX SERWO SB-2270SG+ DIGITAL HiVolt (BRUSHLESS)

High-quality digital servo from the renowned Savox company.

Features:

• SOFT START: Soft start (protects the servo and control mechanism when the on-board electronics are on).
• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision).
• motor type: coreless motor (Coreless)
• Savox SB-227x HiVolt digital servo, which combines state-of-the-art technology with very high 12-bit (4096) resolution.

Specifications:

• Torque at 6 V - 25 kg
• Torque at 7.4 V - 32 kg
• Torque at 8.4 V - 45 kg
• Speed at 6 V - 0.15 s / 60 degrees
• Speed at 7.4 V - 0.12 s / 60 degrees
• Speed at 8.4 V - 0.11 s / 60 degrees
• Power supply: 6 V - 8.4 V (2s HV Lipo kit)
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Bearings: x 2 BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Weight: 69 g
• Brushless motor (Coreles)

For more information and technical data, please visit the manufacturer's website.

*Follow the enclosed instruction manual.
