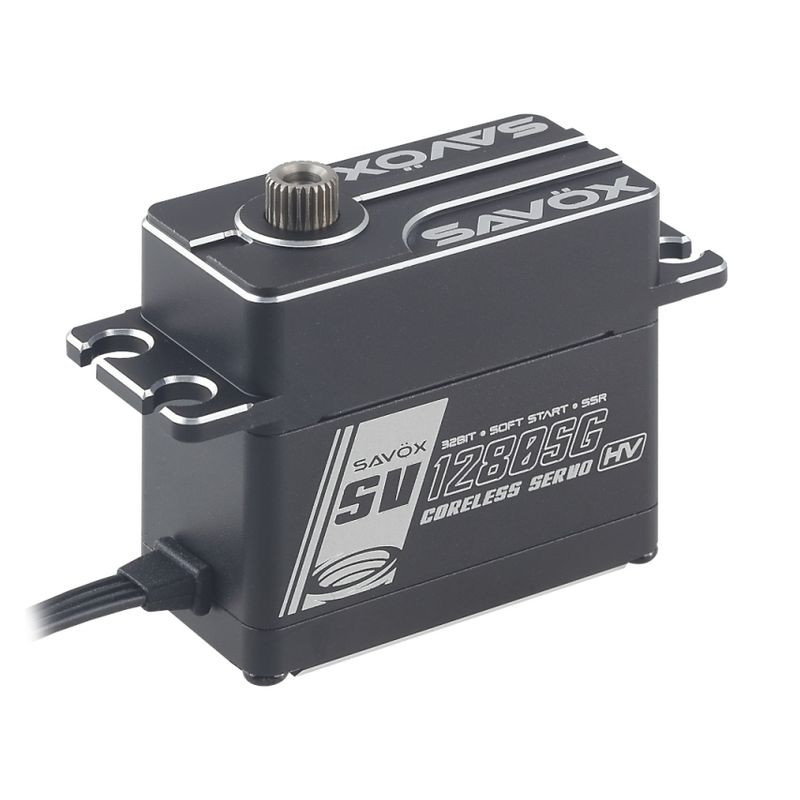

SAVOX SERWO SV-1280SG+ HiVolt DIGITAL

High-quality digital servo from the renowned Savox company.

SAVÖX SV-1280SG servos are brand new servos developed by SAVÖX/TRICORE

The Corelles motor is built directly into the aluminum housing of the servo. In this way, it was possible to build in a much larger motor that not only provides high power and speed, but also dissipates heat optimally. Thanks to the new motor and gearbox composition concept, it was possible to add a third ball bearing to the servo, which improves accuracy and reliability.

SAVöX SV-1280SG servo : is 50% more power, speed, longer life, stability and precision. Simply ideal for demanding pilots or drivers of RC cars, boats, helicopters or airplanes.

The SAVöX SV-1280SG is also a jewel of DESIGN in your model thanks to its black anodized all-aluminum housing. The servo is equipped with steel gears and 3 ball bearings.

Features:

• Metal gearing for long life
• Compatible with SSR (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 for maximum speed and transmission precision)
• SOFT START: Soft start (protects the servo and rudder control mechanism when the on-board electronics are on)

Specifications:

• Torque at 6 V - 38 kg
• Torque at 7.4 V - 45 kg
• Torque at 8.4 V - 55 kg
• Speed at 6 V - 0.17 s / 60 degrees
• Speed at 7.4 V - 0.14 s / 60 degrees
• Speed at 8.4 V - 0.12 s / 60 degrees
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.2
• Bearings: 3 x BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Weight: 76 g
• Motor type: coreless (Coreless)

*Follow the instruction manual included with the product
