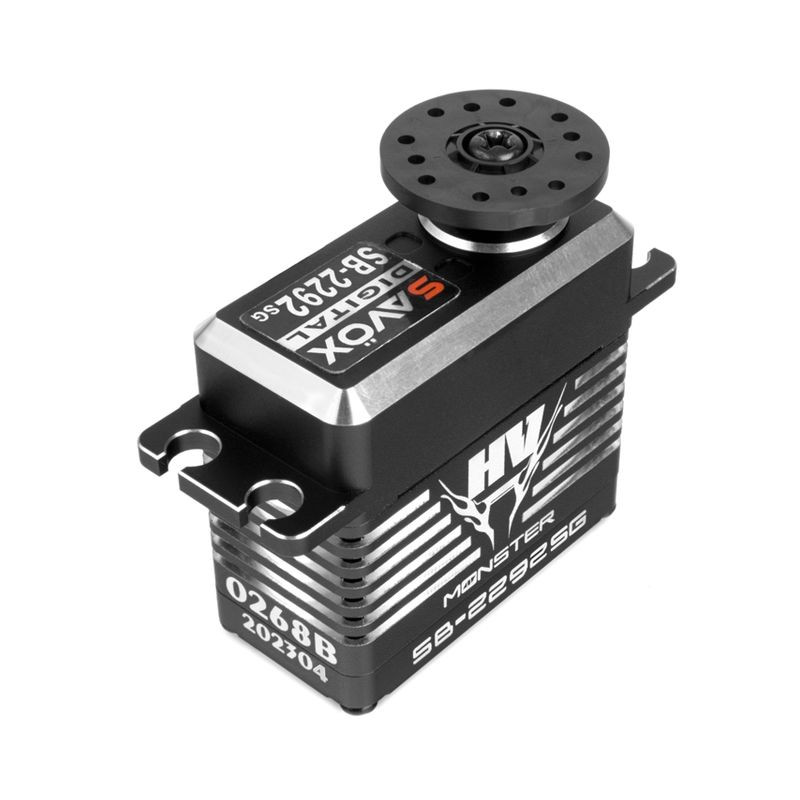

SAVOX SERWO SB-2292SG DIGITAL HiVolt (BRUSHLESS)

High quality digital servo from the renowned Savox company.

SAVÖX SB-229X servo is a brand new patented technology developed by SAVÖX/TRICORE

The AC motor is built directly into the aluminum housing of the servo. In this way, it was possible to incorporate a much larger motor, which not only provides high power and speed, but also dissipates heat optimally. Thanks to the new concept of motor and gearbox composition, it was possible to add a third ball bearing to the servo , which improves accuracy and reliability.

SAVöX SB-229X servo: is 35% more power, speed, longer life, stability and precision.

Features:

• Metal gearbox ensures durability and long life.
• Aluminum housing allows for lower operating temperature.
• SOFT START: Soft start (protects servo and control mechanism when on-board electronics are engaged).
• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 for maximum speed and transmission precision).
• motor type: coreless motor (Coreless)
• The SAVöX SB-229X is also a jewel of DESIGN in your model with its fully black anodized aluminum housing / servo equipped with steel gears and silicone servo cable cover, which is standard on SB-229X servos.

Specifications:

• Torque at 6 V - 27 kg
• Torque at 7.4 V - 36 kg
• Torque at 8.4 V - 50 kg
• Speed at 6 V - 0.085 s / 60 degrees
• Speed at 7.4 V - 0.07 s / 60 degrees
• Speed at 8.4 V - 0.055 s / 60 degrees
• Power supply: 6 V - 8.4 V (2s HV Lipo kit)

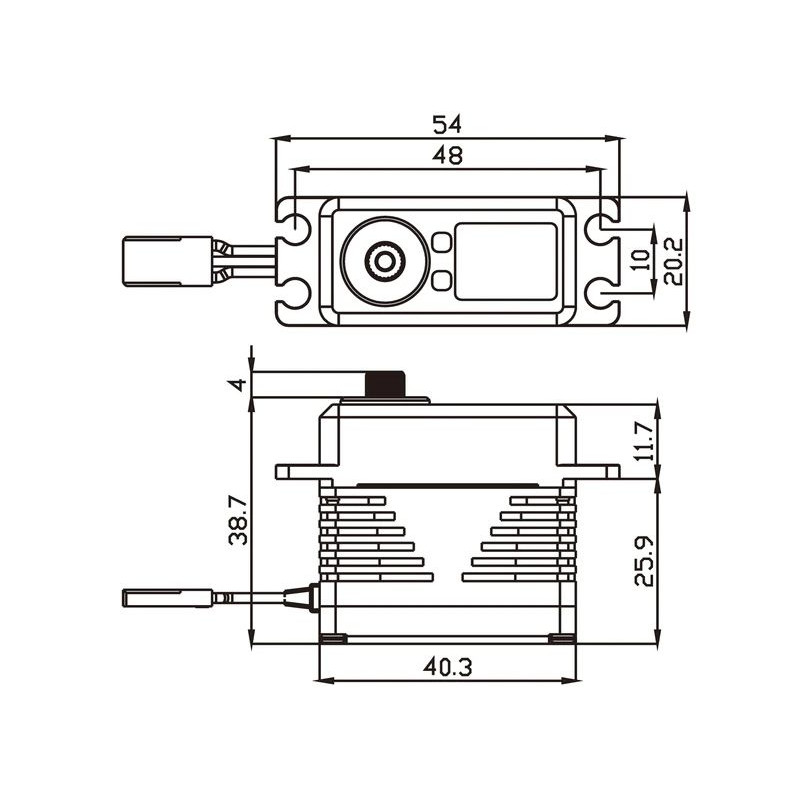

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Bearings: 3 x BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Weight: 79 g
• Brushless motor

For more information and specifications, visit the manufacturer's website.
