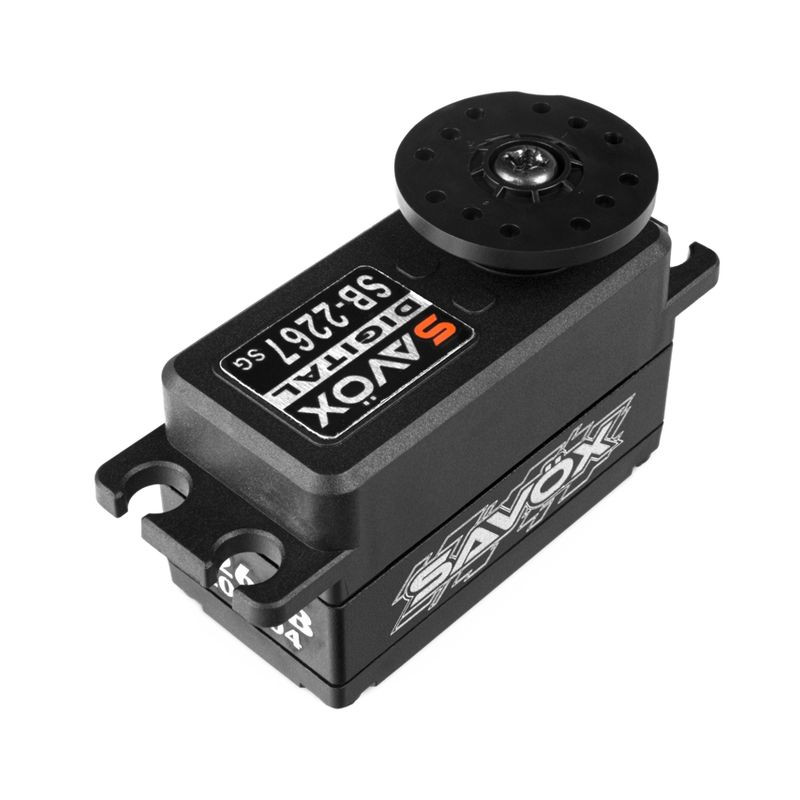

SAVOX SERWO SB-2267SG DIGITAL HiVolt (BRUSHLESS)

High quality digital servo from the renowned Savox company.

SAVÖX SB-2267SG servo is a brand new patented technology developed by SAVÖX/TRICORE

The AC motor is built directly into the aluminum housing of the servo. In this way, a much larger motor could be built in, which not only provides high power and speed, but also dissipates heat optimally.
SAVöX SB-2267SG servo: that's 35% more power, speed, longer life, stability and precision.

Features:

• SOFT START: Soft start (protects the servo and control mechanism when the on-board electronics are engaged).
• SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 maximum speed and transmission precision).
• motor type: coreless motor (Coreless)
• The SAVöX SB-2267SG is also a jewel of DESIGN in your model with its fully black anodized aluminum housing / servo equipped with steel gears and silicone servo cable cover, which is standard on the SB-2267SG servos.

Specifications:

• Torque at 6 V - 18 kg
• Torque at 7.4 V - 25 kg
• Torque at 8.4 V - 32 kg
• Speed at 6 V - 0.10 s / 60 degrees
• Speed at 7.4 V - 0.08 s / 60 degrees
• Speed at 8.4 V - 0.065 s / 60 degrees
• Power supply: 6 V - 8.4 V (2s HV Lipo kit)

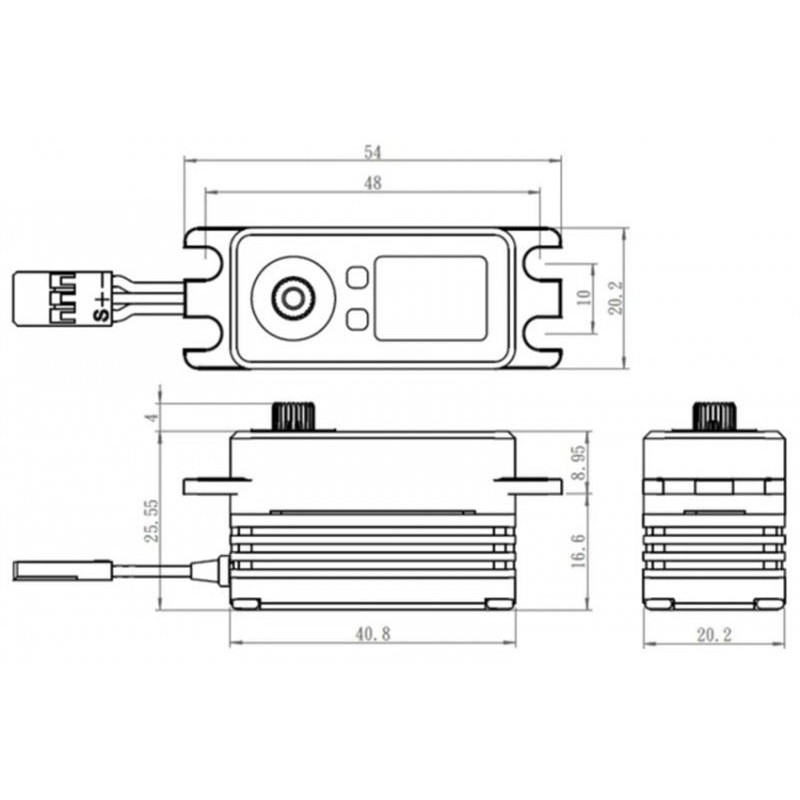

• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Bearings: 2 x BB
• Gear (pinions): metal
• Output gear: 25 teeth
• Weight: 57 g
• AC brushless motor

For more information and technical data, visit the manufacturer's website.

*Follow the instructions included with the product.
