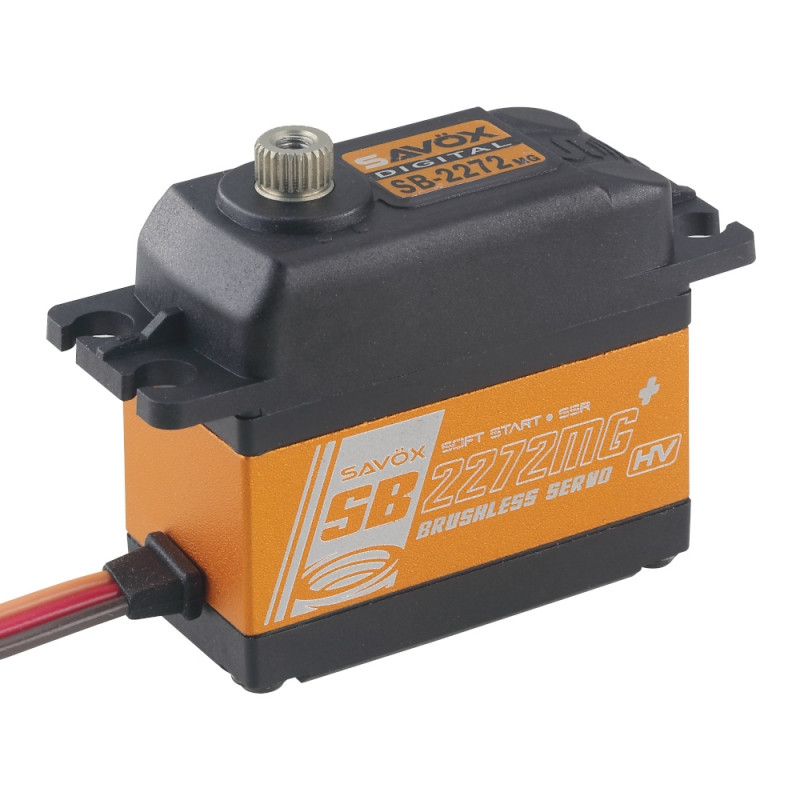

SAVOX SERWO SB-2272MG+ DIGITAL HiVOLT

€101.39
12-7678
Savox
In stock

High-quality digital servo from the renowned Savox company.

Features:

  • Metal gearbox for durability and long life.
  • Aluminum middle housing allows for lower operating temperature.
  • SOFT START: Soft start (protects the servo and control mechanism when the on-board electronics are on).
  • SSR compatible (allows ONLY in combination with SANWA RC kits like M-17, M-12S, M12RS, MT-44, MT-5 for maximum speed and transmission precision).
  • motor type: coreless motor (Coreless)
  • Savox SB-227x HiVolt digital servo, which combines state-of-the-art technology with very high 12-bit (4096) resolution.

Specifications:

  • Torque at 6 V - 5 kg
  • Torque at 7.4 V - 7 kg
  • Torque at 4.4 V - 10 kg
  • Speed at 6 V - 0.045 s / 60 degrees
  • Speed at 7.4 V - 0.032 s / 60 degrees
  • Speed at 7.4 V - 0.028 s / 60 degrees
  • Power supply: 6 V - 8.4 V (2s HV Lipo kit)
  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Bearings: x 2 BB
  • Gear (pinions): metal
  • Output gear: 25 teeth
  • Weight: 66 g

More information and technical data on the manufacturer's website.
