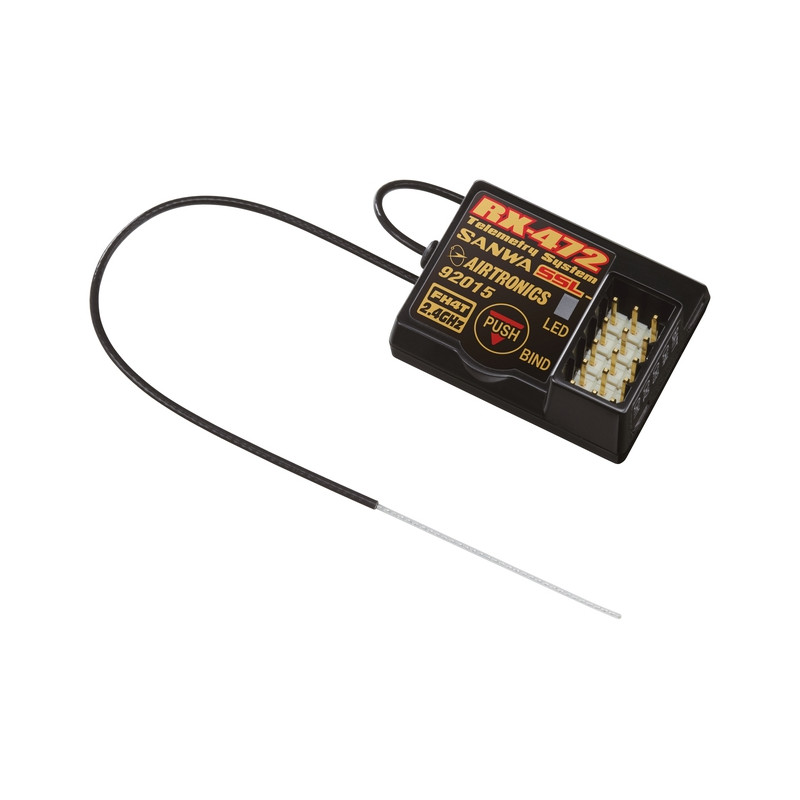

SANWA RECEIVER RX-472 FHSS 3-4/SSL-SSR

4-channel telemetry car receiver from the Japanese company SANWA, operating in 2.4 GHz FHSS-4 modulation.

Characteristics:

• 2.4 GHz FHSS-4/FHSS-3 Spread spectrum modulation
• Support for Sanwa Synchronized Link (SSL) system
• Support for Sanwa Super Response (SSR) system
• The lightest receiver in the class !
• Compatibility: M12, EXZES Z, MT-4 (without SSL system support)
• SSL system (Sanwa Synchronized Link)

Specifications:

• power supply: 4.8 - 7.4 V
• dimensions: 30 x 23.3 x 14 mm (dimension does not include antenna)
• weight: 6.6 g

When using the RX-472 receiver together with the Super Vortex Zero controller, the driver has the possibility to operate the Code AUX Function, with which the Sanwa M12 and EXZES-Z instruments are equipped. This makes it possible to program all functions (including the regulator) from the transmitter. Thanks to the SSL system, the driver does not need a programming card or computer to do this. In addition, telemetry data collected by the speed controller is sent to the transmitter in real time, without the use of any additional sensors. Admittedly, the MT-4 does not offer SSL support, so we will not be able to program the controller from the transmitter, however it will be able to collect telemetry data on the same basis as the Sanwa M12 and EXZES-Z transmitters.

Manufacturer's designation: 107A41117A

*Follow the instructions included with the product.
