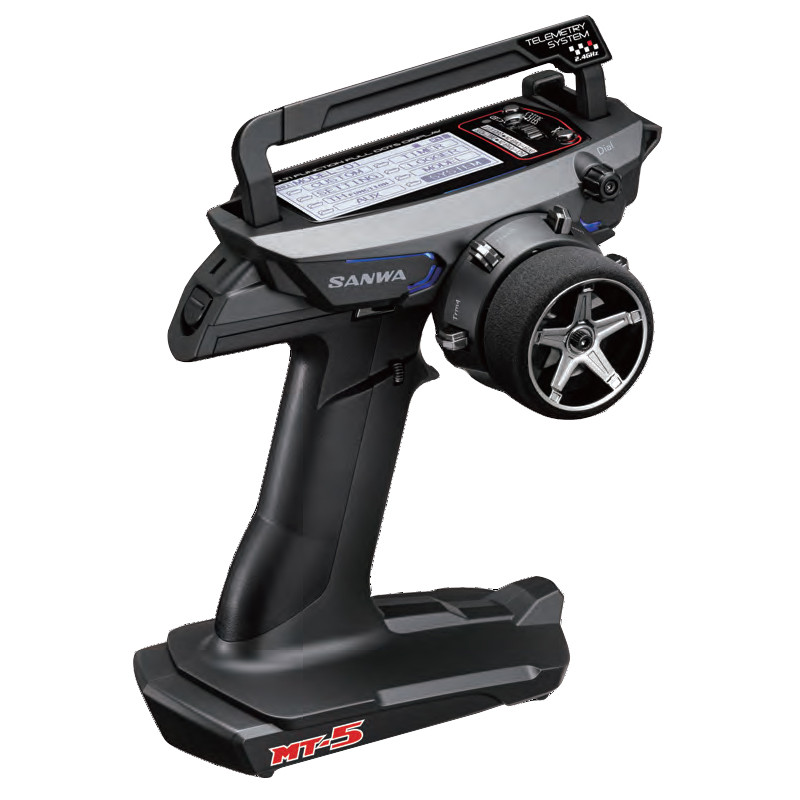

SANWA RADIO MT-5 ( + RX-493i receiver )

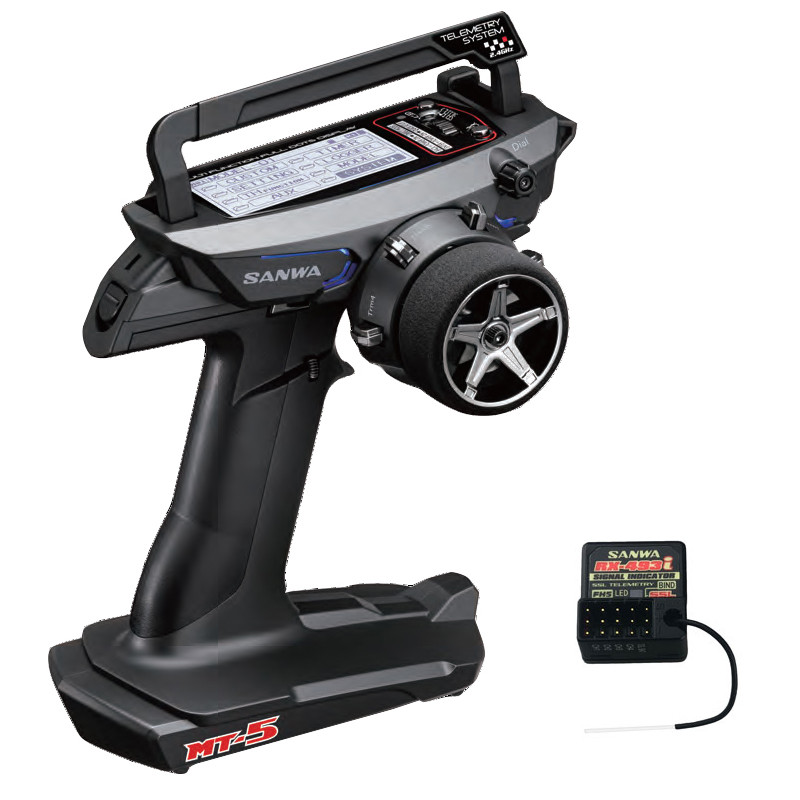

Advanced 4-channel MT-5 2.4GHz camera included with RX-493i receiver

◆Compatible with FH5 RF mode
The FH5 RF mode has a higher resolution than the previous FH4 RF mode.
In addition, MT-5 has installed the SUR (SANWA ULTRA RESPONSE) mode
which is a faster mode than the SSR (SANWA SUPER RESPONSE) mode
which was installed in the MT-44.

The combination with the FH5 RF mode and SUR mode will provide a great smooth feeling.
Compatible receivers include RX-491, RX492, RX-493 and RX-493i.
(FH3 and FH4 compatible receivers such as RX-38*, 45*, 46*, 47* and 48* cannot be used with MT-5)

◆Compatible with indicator function
The indicator function can check the signal strength of the connected transmitter.
When used with a transmitter in which the indicator function is installed, it can be used to find problems
as incorrect receiver placement and finding the best receiver position for the transmitter.

With SANWA's technical development, the indicator function can be checked without affecting the signal strength with the response.

◆ HIGH-RESOLUTION DISPLAY
The same detailed dot as in the MT-44 enables such a clear picture.
Three types of telemetry data can be displayed simultaneously thanks to the grayscale display.

◆ BEST POSITION FOR STEERING WHEEL/THROTTLE
The steering/throttle is set to the best position for operation.
The drop-down list is used as the standard position.

◆THREE AAA BATTERIES
Three AAA batteries allow you to be not only compact, but also lightweight.

◆ USB CHARGING
When using the optional Li-Po 1 battery, the weight becomes lighter and can be changed from the USB input.

■ SYSTEM: 2.4 GHz FH5 ■ 4 channels ■ Transmitter: TX-491 ■ Receiver: RX-493i
[New features]
●FH-5 RF MODE (compatible with SUR response mode) ●Function indicator

[Other features]
●Movable carrying handle ●Quick setup wizard ●Safety link ●Race mode ●Customized menus ●MicroSD card compatibility ●Telemetry switch ●Clock ●Ambient temperature display ●CSV output for log data ●Code 10 compatibility (naming support) ●Simultaneous three telemetry data display ●Three AAA batteries ●Li-cell compatiblePo 1 (USB exchange support) ● Large, full dot LCD monitor ● LED backlight ● Fully adjustable trigger ● Telemetry function ● Built-in antenna ● Menu selector ● ST/ TH Tension adjuster ● Dual speed ● Endpoint adjuster ● Anti-lock brake ● Servo speed ● Offset ● Trim/additional trim ● Servo reverser ● Curve (exponential/adjustable speed control) ● AUX1 (motion type for 3 channels. is the same as MT Function -4S.) ● AUX2 (motion type for 4CH. is the same as MT Function-4S.) ● Fail safe (power/battery) ● Clock (lap/interval/down) ● Lap ● Recorder ● Memory of 20 models (when used with SD card, 250 models are available.) ●Model name (12 letters) ●Model (Select/Clear/Copy) ●Direct model selection ●Clipping type ( Center/parallel) ●Throttle type (70:30 / 50:50) ●RF MODE setting (FH4T/FH3) ●Response mode setting (NOR/SHR/SSR)* ●Button assignment (SW/TRIM/DIAL/CHAIN)
●SETTING THE AUX TYPE
・CODE AUX (with naming function)
・CODE AUX (Step 1 - 100)
・AUX POINT (2 - 6 points)
・4WS MIXING (Front/Rear/Normal (coordinate phase)/Rewers (opposite phase))
・ MOA MIXING (FWD/4WD/RWD)
・ AUXILIARY MIXING (ST/MIXING)
●Beeper buzzer (scale/volume) ●Transmitter battery alarm ●LCD contrast ●Loudness adjustment ●Mechanical rudder angle ●Small handle cap
●Compatible receivers:RX-491, RX-492, RX-493, RX-493i
＊Compatible with telemetry

[SSL (SANWA synchronized link) system]
SANWA NEW SSL SYSTEM
●When used with compatible Super Vortex, SV-Plus, PGS Servo and SGS-02 series receivers, etc. via Transmitter can be accessed via SSL functions while driving.
●Because the setting can be done without stopping the car, detailed adjustment according to race conditions
is available without interrupting intervals and changing machine conditions.
[Telemetry system response]
●It is often said that the telemetry system reduces the speed of response. However, SANWA Original Data Processing and Algorithm Design enables telemetry without reducing response speed.
Our superior telemetry system has no reduction in response speed.
●With our telemetry system, valuable race data will help you set up and run your next race.
[Response Mode]
●Do not use Analog Servo in SHR, SSR or SUR mode.
If Analog Servo is used in SHR, SSR or SUR mode, the servo will be broken and will not work.
Digital servo (PGS, SRG, Digital ERG, SDX series) can be used in both NOR and SHR modes.
●The SSR mode can be used by PGS and SRG series servos.
SSR mode can also be used by SUPER VORTEX Gen 2 PRO, Gen2, STOCK, SUPER VORTEX ZERO, TYPE D, SPORT, HX-12 STOCK SPECIAL HV-01 and HV-02.
●SUR mode can only be used by PGS series servos.
SUR mode can also be used by SUPER VORTEX Gen 2 PRO.
*SUPER VORTEX Gen2 PRO requires a software update for SUR response mode.
Please refer to the SUPER VORTEX Gen2 PRO website.
http://sanwa-denshi.com/rc/car/speedcontroller/super_vortex_gen2_pro.html

● BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work in SHR or SSR mode.
Please use NOR mode for the above ESC.

About the version upgrade program: Ver. 1.01.00 is the latest version.
