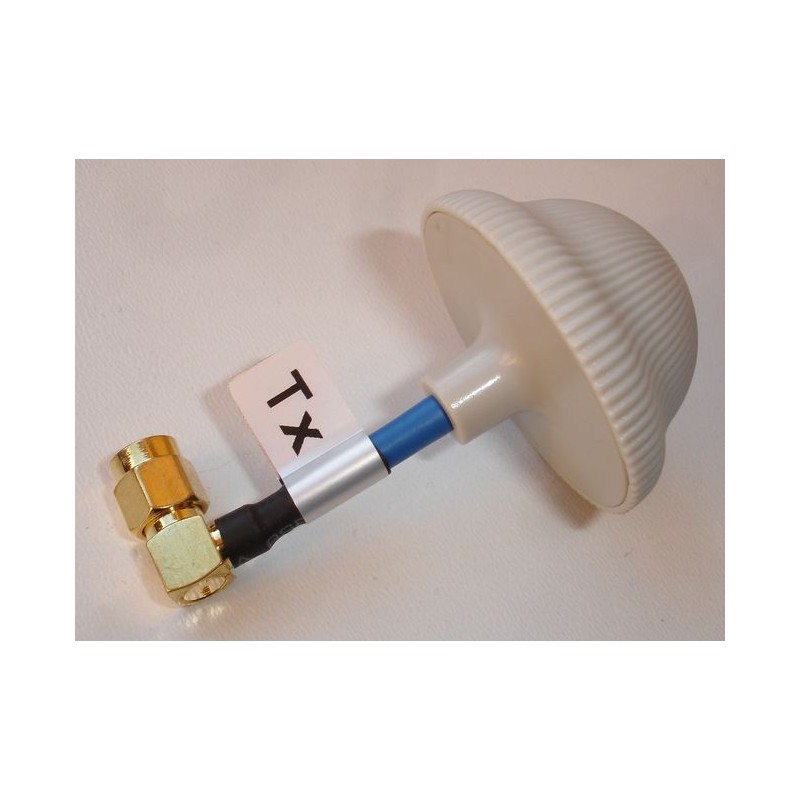

ANTENA ES021013-CLOVER-LEAF ANTENNA

ANTENA ES021013-CLOVER-LEAF ANTENNA mega cena !

€9.52
13-0210
Pozostałe
In stock

The 5.8GHz circular polarized clover TX antenna is a great way to increase the performance of your FPV system. Constructed to increase the range and clarity of the image. Circularly polarized antennas have become an indispensable standard for modern FPV systems. The mushroom-shaped cover is designed to minimize wave reflection and protect the antenna inside with an SMA connector.
Technical data:
  • Frequency range: 5725 ~ 5875 MHz
  • Impedance: 50 Ohm
  • VSWR: <1.5
  • Gain: 1.8db
  • Connector: SMA Male
  • Total height 63mm
  • Mushroom diameter: 39mm
  • Cable length: 40mm
  • Weight: 14g
  • Direction: all
  • Mounting: angular
