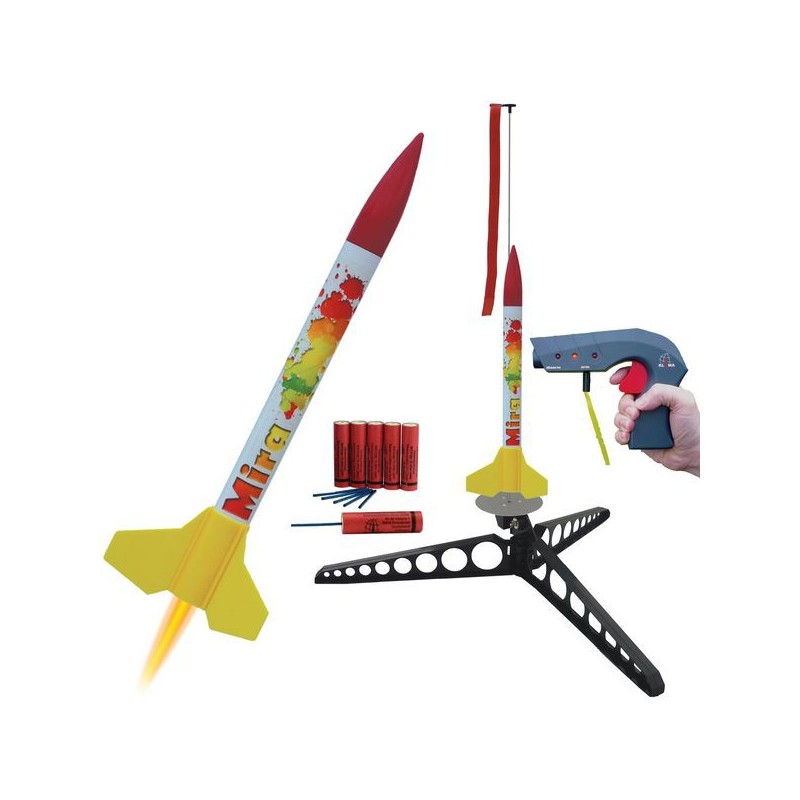

KL.RAKIETA MIRA SET (2110) GERMANY

The Mira rocket manufactured by the German company Klima GmBH, which specializes in the production of rocket engines and rockets. The model uses plastic stabilizers that are resistant to damage during landing. A parachute is also included.

Technical data:

• height: 338 mm
• tube diameter: 26 mm
• weight: 55 g

Recommended motors:

• A6-4 (55 m)
• B4-4 (160 m)
• C6-7 (410 m)

Kit includes:

• mira rocket
• 6 A6-4 engines
• launcher
• launcher

Engines:

A6-4 rocket engine for model rockets from the German company Raketenmodellbau Klima GmbH, which specializes in manufacturing rocket engines and rockets.

Technical data:

• outer diameter: 18 mm.
• length: 70 mm.
• total impulse: 2.5 Ns
• max thrust: 6.0 N
• motor running time: 0.6 s.
• delay: 4 s.
• package: 6 pieces of motors + 6 pieces of fuse

*Follow the instruction manual attached to the product and applicable laws ! Observe all safety rules ! Product intended for persons 18 years and older !

Launcher:

A sizable rocket launcher from the German company Klima GmBH. The tripod is made of sturdy openwork plastic, and the 150 mm diameter plate and rod are made of stainless steel. The launcher has angular adjustment of the rocket's flight path, and when folded it will successfully fit into the launch box.

Technical data:

• diameter of tripod: 900 mm
• rod diameter: 3.2 mm
• rod length: 880 mm
• total height: 1000 mm
• dimensions after folding: 620 x 160 x 150 mm
• the store offers the rod as a replacement part in case of damage

Starting device:

A pistol starter from the German company Klima GmBH, for feeding an electric impulse to the igniter of a rocket motor. The device is protected against accidental impulse feeding by a banana plug (the device will work when the connector is "plugged" into the gun and the circuit is closed), at the same time you will be informed by glowing LEDs and a sound signal that the motor in the rocket is ready to "fire".

Technical specifications:

• 9V battery ( not included)
• cable length: 5 mb
• dimensions: 180x140x38 mm
• crocodiles made of stainless steel

*Follow the instruction manual included with the product and applicable laws ! Keep all safety rules ! The product is intended for people 18 years and older !
