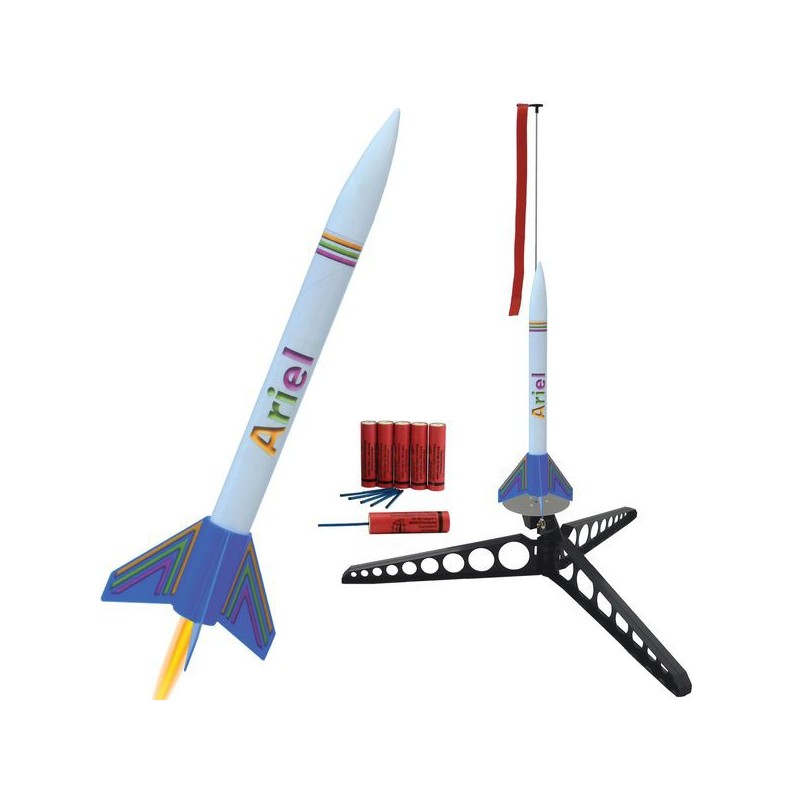

CL.RACKET ARIEL SET (2120)

The Ariel rocket is manufactured by the German company Raketenmodellbau Klima GmbH, which specializes in the production of rocket engines and rockets. The model uses plastic stabilizers that are resistant to damage during landing. A parachute is also included.

Technical data:

• height: 352 mm
• tube diameter: 26 mm
• weight: 60 g

Recommended motors:

• A6-4 (55 m)
• B4-4 (160 m)
• C6-7 (410 m)

Set includes:

• ariel rocket
• 6 engines A6-4
• launcher

Engines:

A6-4 rocket engine

Technical specifications:

• outer diameter: 18 mm
• length: 70 mm
• total impulse: 2.5 Ns
• max thrust: 6.0 N
• motor running time: 0.6 sec
• delay: 4 sec
• package: 6 pieces of motors + 6 pieces of fuse

*Follow the instruction manual attached to the product and applicable laws! Keep all safety rules ! The product is intended for people 18 years and older !

Launcher:

A sizable rocket launcher from the German company Klima GmBH. The tripod is made of sturdy openwork plastic, and the 150 mm diameter plate and rod are made of stainless steel. The launcher has angular adjustment of the rocket's flight path, and when folded it successfully fits into the launch box.

Technical data:

• diameter of tripod: 900 mm
• rod diameter: 3.2 mm
• rod length: 880 mm
• total height: 1000 mm
• dimensions after folding: 620 x 160 x 150 mm
• in the offer of the store we have the rod as a spare part in case of damage.
