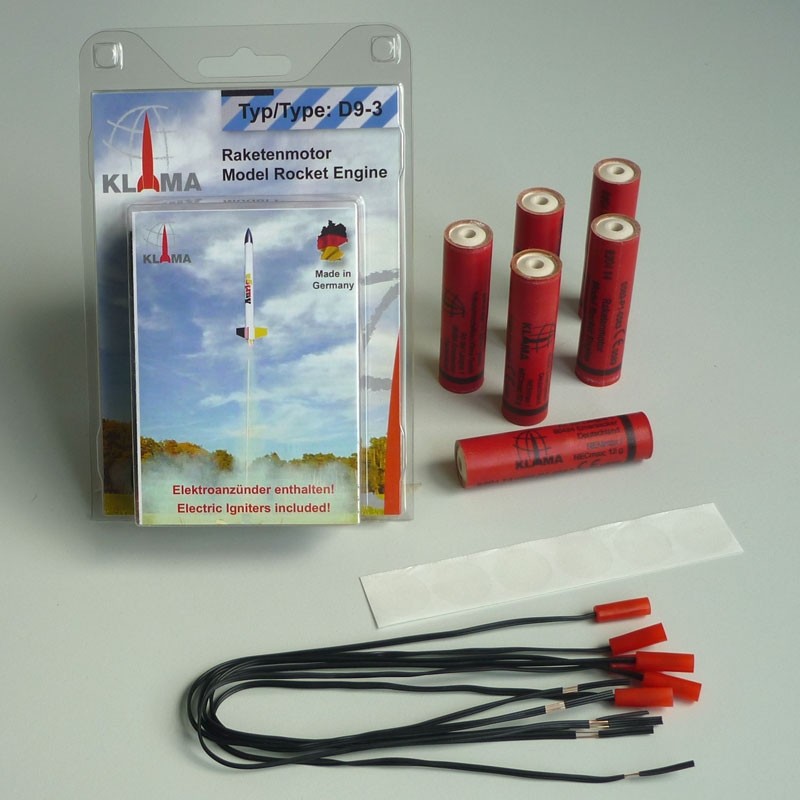

KL.SILNIK RAKIETOWY D9-3 + ZAPALNIK ELEK 6 sztuk (0403) GERMANY

D9-3 rocket motor for model rockets from the German company Raketenmodellbau Klima GmbH, specializing in the production of rocket motors and rockets.

Technical data:

• outer diameter: 18 mm
• length: 70 mm
• total impulse: 19.5 Ns
• max thrust: 8.7 N
• motor running time: 2,1 s
• delay: 3 s
• package: 6 motors + 6 electric igniters


Basic safety rules !

PRODUCT INTENDED FOR PEOPLE 18 YEARS OF AGE AND OLDER !

1. Materials

The rocket motor can only be used in model airplanes or rockets of lightweight construction made of paper, wood, plastic or rubber and containing no metal parts.

2. Engines

Only original rocket motors are allowed to be used. Any tampering with rocket motors is prohibited.

3. Safety

Product for persons 18 years of age and older. For outdoor use only. There is a risk of fire. Prohibit smoking in the vicinity of the product. Extinguish fire with appropriate means from a safe distance. Store only in the original packaging. If there is a possibility of injury to people during the descent of the model, equip the rocket or model airplane with a safety system such as a parachute or braking strap - this can further protect the model from damage during descent.

4. Launch site

The launch site should be far from buildings. The ground of the launch site must not be made of flammable materials or be on flammable ground (dry grass). Compliance with the regulations for rocket and model aircraft launches is required. The minimum diameter of the launch site must be ¼ of the flight height.

Do not perform flights in high winds. The flight path of the model must be free of obstacles.

5. Ignition system

Insert the fuse or electric igniter through the nozzle, pressing firmly on the rocket fuel. Light the fuse at the other end and quickly move away. Ignition fuse delay is: 3-6 seconds, electric ignition: no delay. The operator should be at least 6 meters from the launch site.

6. If the engine does not start

Cut the power supply (electric ignition) and wait at least 3 minutes before approaching the launch site. Check the ignition system and try again.

7. Disposal

Do not use damaged rocket motors - destroy them by immersion in water.

8. Storage

Store rocket motors in a cool and dry place. The motors contain explosives and must not be exposed to temperatures above 30°C and open flame.

*Follow the instruction manual supplied with the product and applicable laws.
