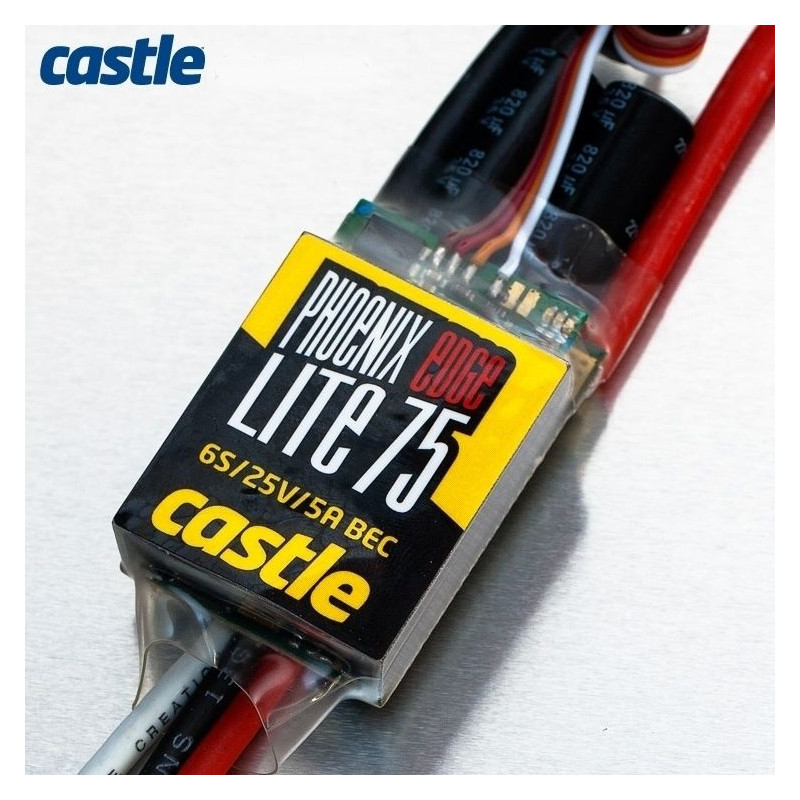

CASTLE PHOENIX EDGE LITE 75 - 25V / 75A ESC (010-0112-00)

CASTLE PHOENIX EDGE LITE - is the next evolution in regulator technology - a speed controller from the American company Castle.

Basic specifications:

• power supply: 2 - 8S LiPo
• maximum continuous current (at full throttle): 75A*
• bEC voltage: 5 - 8.4 adjustable
• bEC current: 5A peak**

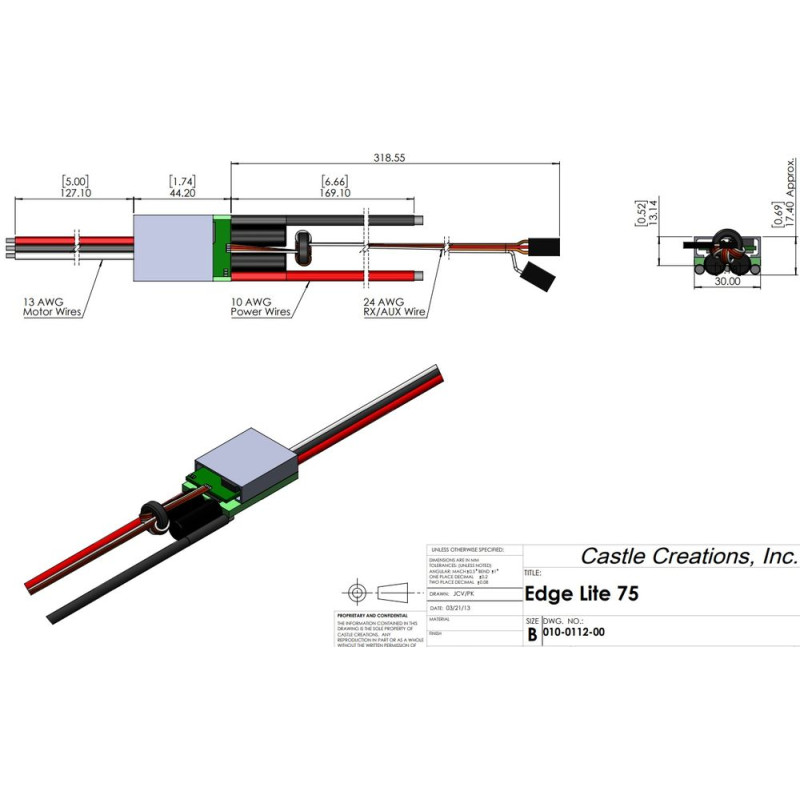

• dimensions (width): 30.5 mm
• dimensions (length): 66 mm
• dimensions (height): 21.4 mm
• weight with wires: 81 g

Programming: Fully programmable Castle feature set using the Castle Link USB adapter and free Castle Link Windows software, or the Castle Link iOS app and downloadable B-LINK Bluetooth adapter

*RC HOBBY APPLICATION RATING: 75 A with proper cooling. Phoenix Edge Lite controllers are designed without a heatsink for extreme airflow applications, such as EDF aircraft, or for applications where average current requirements are much lower than peak current requirements. The temperature of the controller must never exceed 212°F (100°C). Exceeding current or temperature ratings can damage components and shorten the life of the ESC. Always check system current draw at full throttle. Reduce the load or increase the airflow to lower the operating temperature of the ESC.

**The peakindicates that the current is maintained for 0.5 seconds - long enough to meet the transient current draw of most servos. Your configuration may vary. Always check servo current draw before flying your model for the first time.

For more technical information, instructions, dimensions, etc., visit the manufacturer's website.

- Follow the instruction manual included with the product.
