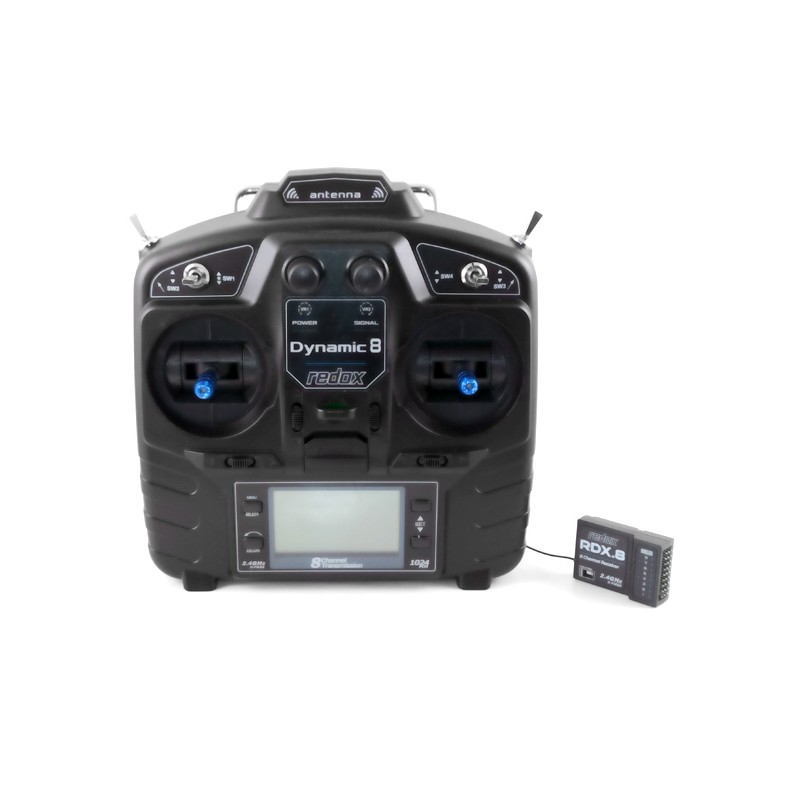

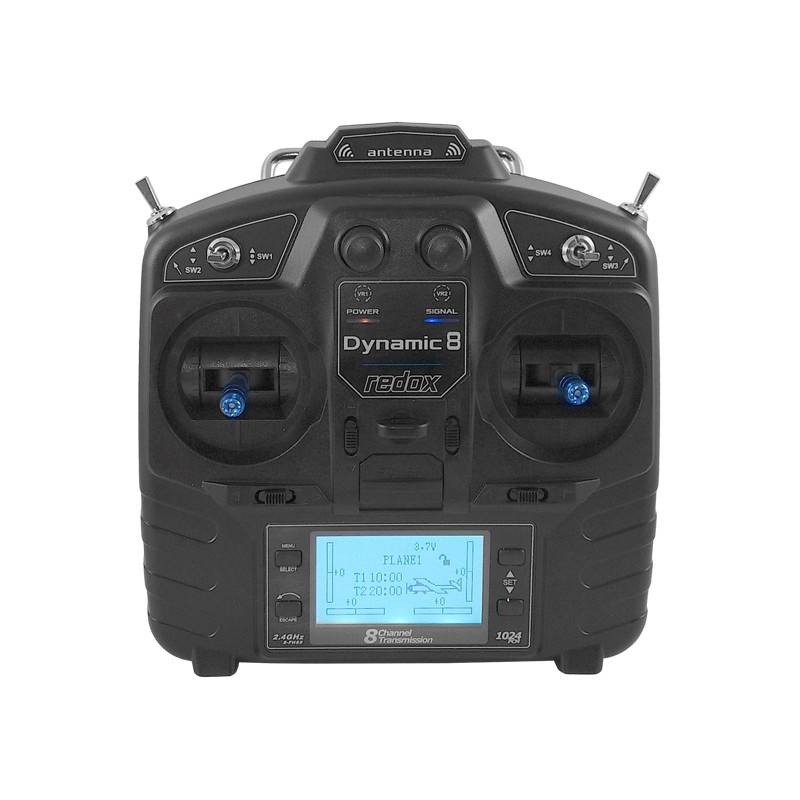

REDOX EQUIPMENT DYNAMIC 8 (+ RDZ 8)

Redox DYNAMIC 8 is a universal, 8-channel digital modeling transmitter, offered in a set with a compatible Redox RDX receiver. 8.
The transmitter has 6 proportional functions (sticks + 2 potentiometers) plus 4 additional switches (3 two-position and 1 three-position).

The rod system of the Dynam ic 8 apparatus classifies it primarily as a transmitter intended for operating flying models (airplanes, helicopters, drones), however, the apparatus can also be successfully used for models that move on the water (boats, motorboats, yachts) and on paved surfaces (cars).

The transmission range of the transmitter signal, depending on the receiver used, may be from about 800 to 1500 meters (in optimal conditions and undisturbed working environment).

Characteristics of the Redox Dynam ic 8 transmitter:

• Number of channels: 8x PWM + 1x SBUS
• Supported model types: Airplanes, UAVs, Helicopters, Cars, Boats
• Frequency / Modulation: 2.4 GHz S-FHSS, FSK
• Resolution: (1024 p.)
• Working voltage: 4.8 - 6 V
• Current consumption (own): ~ 150 mA
• Weight: 460 g (approx. 553 g with batteries)

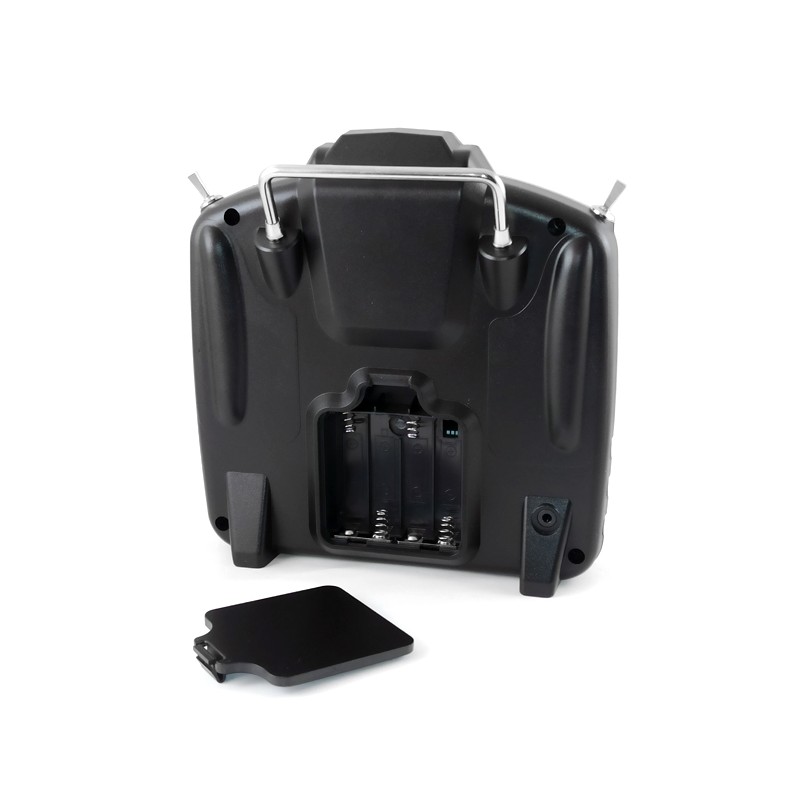

• Power supply: 4x AA NiMH rechargeable battery or 4x LR6 alkaline batteries
• Low voltage alarm: Yes

Receiver in the Redox RDX.8 set:

• Number of channels: 8x PWM + 1x SBUS
• Frequency / Modulation: 2.4 GHz S-FHSS, FSK
• Working voltage: 3.5 - 7.4 V (max. 2s LiPo)
• Compatible with HV servos: Yes
• Weight: 12 g
• Sizes: 42 x 28 x 12 mm
• Antenna length: 150 mm
