REDOX RC CLASIC 6 APPARATUS + RDX RECEIVER. 6

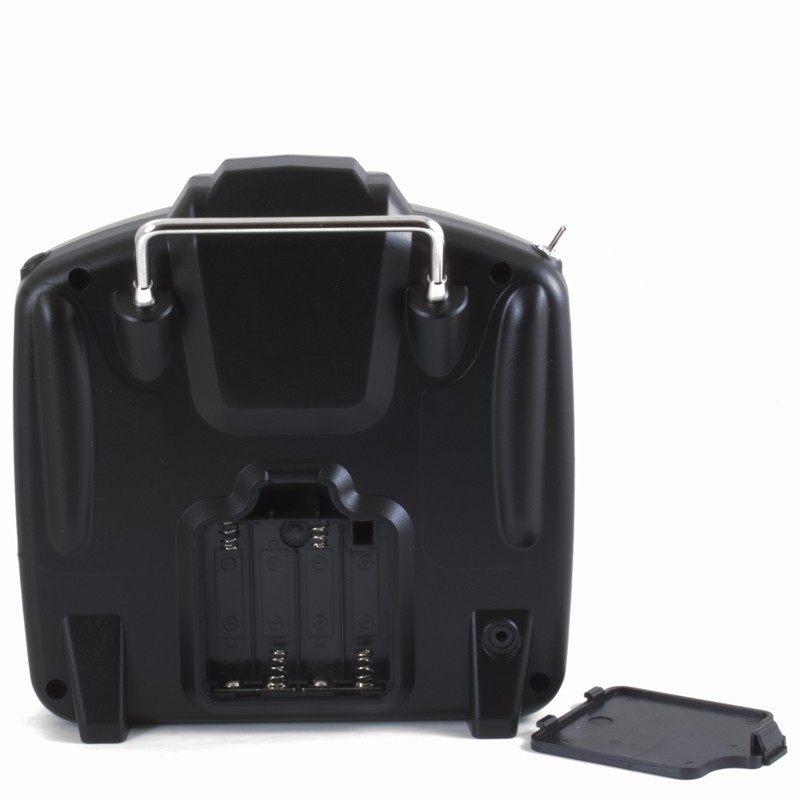

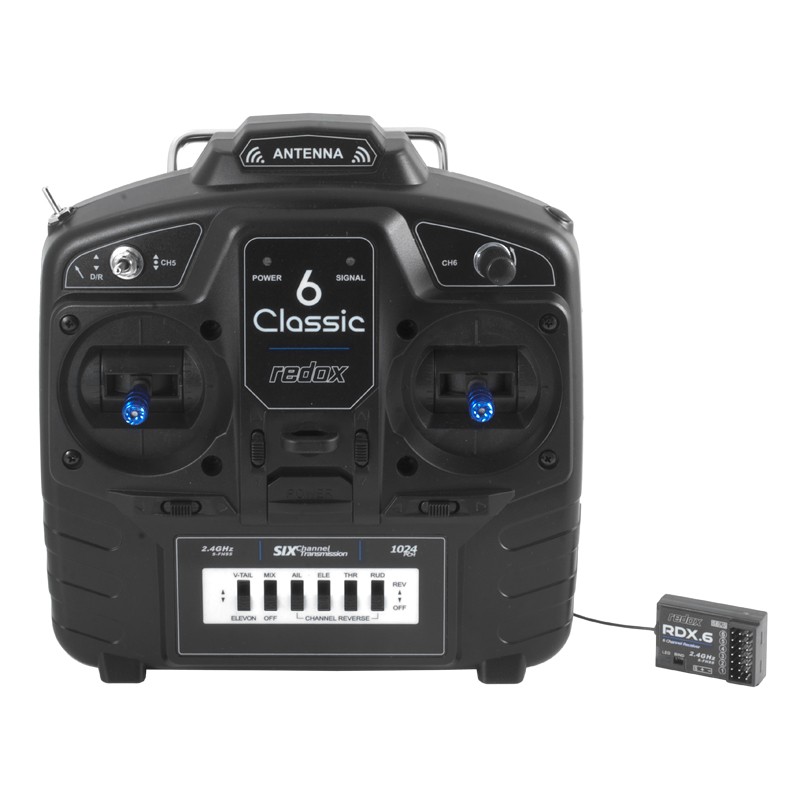

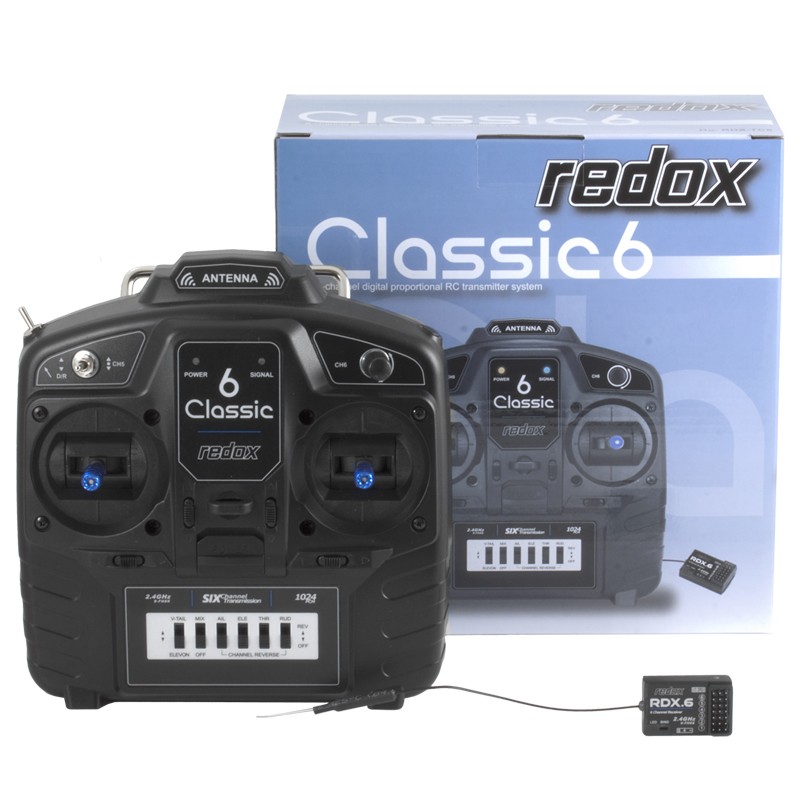

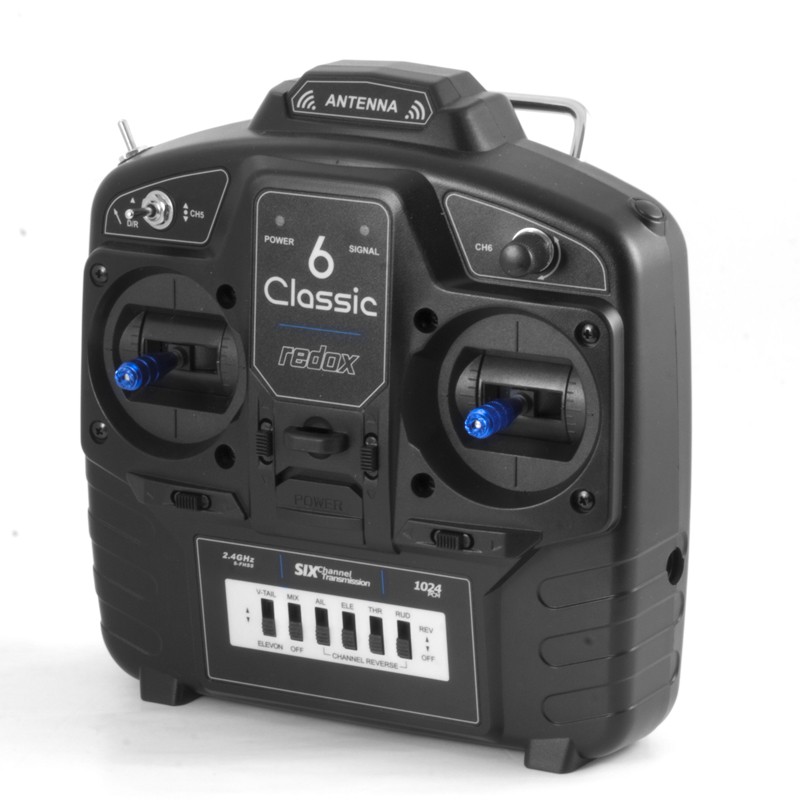

Redox Classic 6 is a universal, 6-channel digital modeling transmitter, offered in a set with a compatible Redox RDX.6 receiver.

The transmitter has 5 proportional channels, 1 switch channel (0/1) as well as built-in Elevon and Aileron mixers, Dual / Rates for ch. 1, 2 and 4, and electronic trimmers and reverses for can. 1-4.
The bar system of the Classic 6 apparatus classifies it primarily as a transmitter intended for operating flying models (airplanes, helicopters, drones), however, the apparatus can also be successfully used for models moving on the water (boats, motorboats, yachts) and on paved surfaces ( cars).

The transmission range of the transmitter signal, depending on the receiver used, may be from about 800 to 1500 meters (in optimal conditions and undisturbed working environment).

Characteristics of the Redox Classic 6 transmitter:

• Number of channels: 6x PWM + 1x SBUS
• Supported model types: Airplanes, UAVs, Helicopters, Cars, Boats
• Frequency / Modulation: 2.4 GHz S-FHSS, FSK (1024p.)
• Working voltage: 4.8 - 6 V
• Current consumption (own): ~ 120 mA
• Weight: 434 g (approx. 525 g with batteries)
• Power supply: 4x AA NiMH rechargeable battery or 4x LR6 alkaline batteries
• Low voltage alarm: Yes

Receiver included: Redox RDX.6:

• Number of channels: 6x PWM + 1x SBUS
• Frequency / Modulation: 2.4 GHz S-FHSS, FSK
• Working voltage: 3.5 - 7.4 V (max. 2s LiPo)
• Compatible with HV servos: Yes
• Weight: 7.2 g
• Sizes: 35 x 22.5 x 9 (12) mm
• Antenna length: 160 mm
