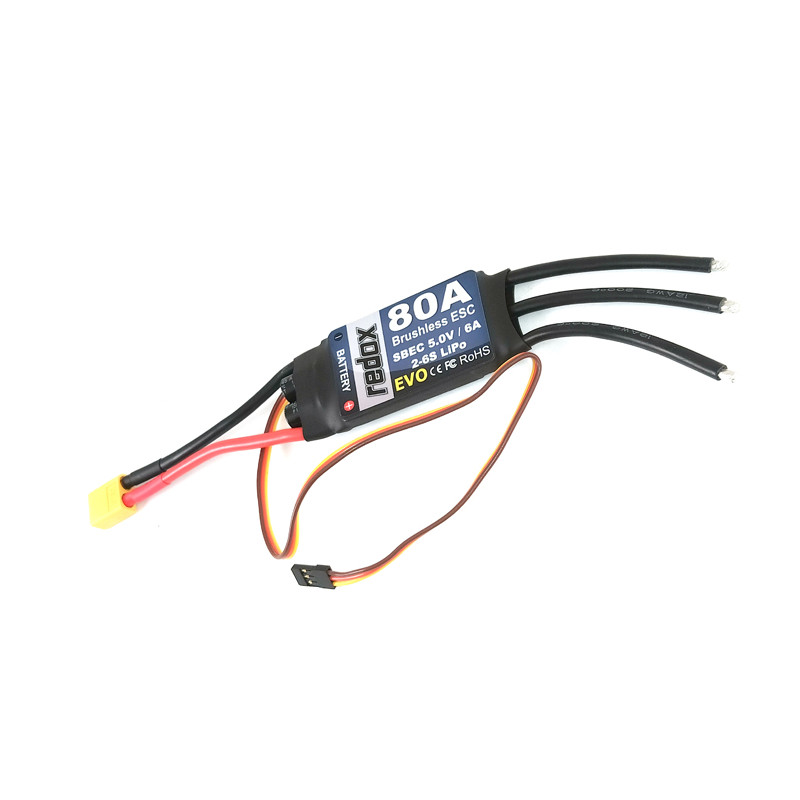

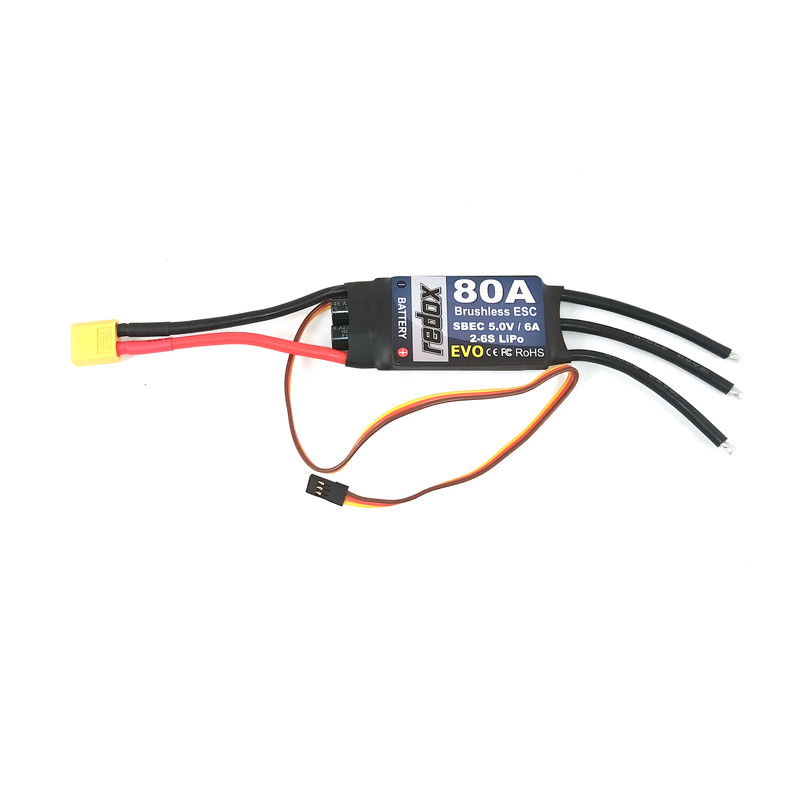

REDOX SPEED CONTROLLER EVO 80A

Redox EVO 80A regulator

Universal Redox EVO 80A regulator for brushless motors designed for use in model airplanes and helicopters.

Quick jumper programming capability both from a dedicated programming card (Redox Evo program card) and from the throttle stick in a special programming mode (programming instructions included with the regulator).

Programmable operating modes of the regulator:

• Battery type: NiMH + NiCD / LiPo + LiIon (default)
• Low voltage cut-off method: Power reduction (default) / "hard" power cutoff
• Voltage cut-off thresholds: low, medium, high (LiPo 2.8V / 3.0V / 3.2V / cell; NiMH 0% / 60% / 65% of initial voltages)
• Advance angle (motor timing) (auto/low/high)
• Launch curve: soft (default) / linear
• Flight mode (Governor): off (default) / Helicopter
• Engine direction: regular (default) / reverse
• Reset all programmable governor settings to factory defaults
• 2 brake modes: (off - slow down rotation / on - instantaneous stop)

Technical specifications:

• Length: 82 mm
• Width: 36 mm
• Height: 13 mm
• Weight: 81g
• Operating voltage: Lipo 2-6s (7.4 - 22.2V) or 5-18 NiXX cells (6 - 21.6V)
• Max. instantaneous current: 100A
• Constant current: 80A
• BEC: 5V/6A
• Connectors: unterminated cables (from motor) / XT-60 plug (from battery)

*Follow the instructions included with the product.
