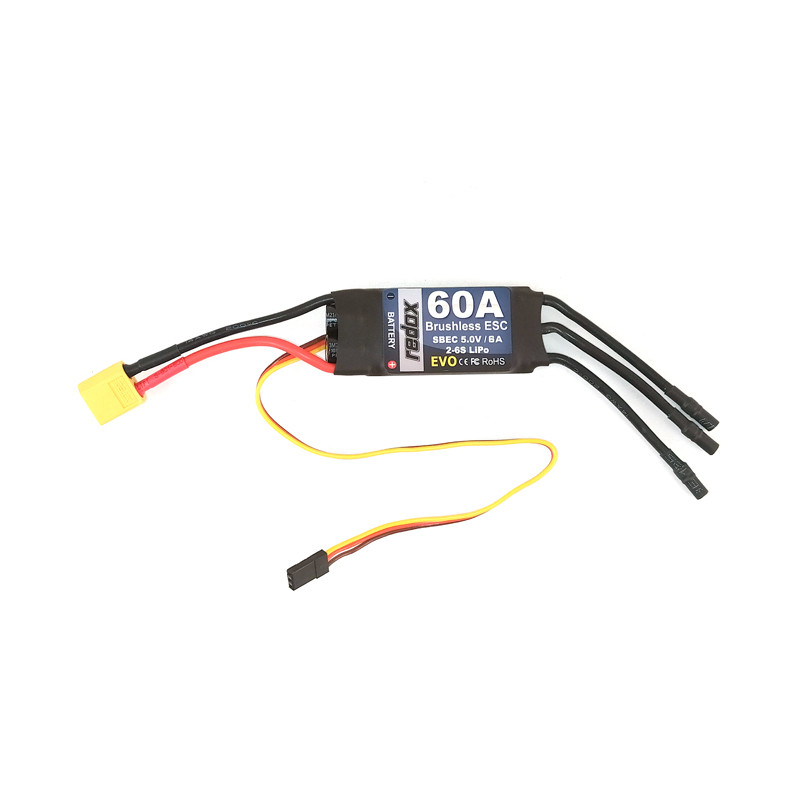

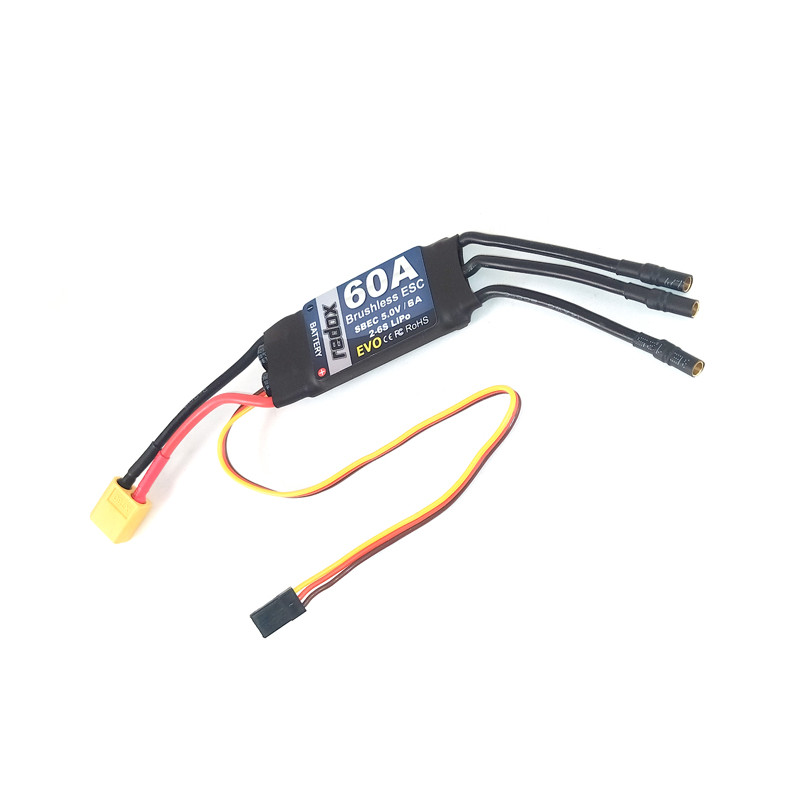

REDOX SPEED CONTROLLER EVO 60 A

Redox EVO 60A regulator

Universal Redox EVO 60A regulator for brushless motors designed for use in model airplanes and helicopters.

Quick jumper programming capability both from a dedicated programming card (Redox Evo program card) and from the throttle stick in a special programming mode (programming instructions included with the regulator).

Programmable operating modes of the regulator:

• Battery type: NiMH + NiCD / LiPo + LiIon (default)
• Low voltage cut-off method: Power reduction (default) / "hard" power cutoff
• Voltage cut-off thresholds: low, medium, high (LiPo 2.8V / 3.0V / 3.2V / cell; NiMH 0% / 60% / 65% of initial voltages)
• Advance angle (motor timing) (auto/low/high)
• Launch curve: soft (default) / linear
• Flight mode (Governor): off (default) / Helicopter
• Engine direction: regular (default) / reverse
• Reset all programmable governor settings to factory defaults
• 2 brake modes: (off - slow down rotation / on - instantaneous stop)

Technical specifications:

• Length: 72 mm
• Width: 30 mm
• Height: 12 mm
• Weight: 57g
• Operating voltage: Lipo 2-6s (7.4 - 22.2V) or 5-18 NiXX cells (6 - 21.6V)
• Max. instantaneous current: 60A
• Constant current: 80A
• BEC: 5V/6A
• Connectors: 3x gold 3.5mm socket (from motor) / XT-60 plug (from battery)

*Follow the instructions included with the product.
