REDOX PROGRAM CARD EVO (karta programująca)

Redox EVO ProgCard

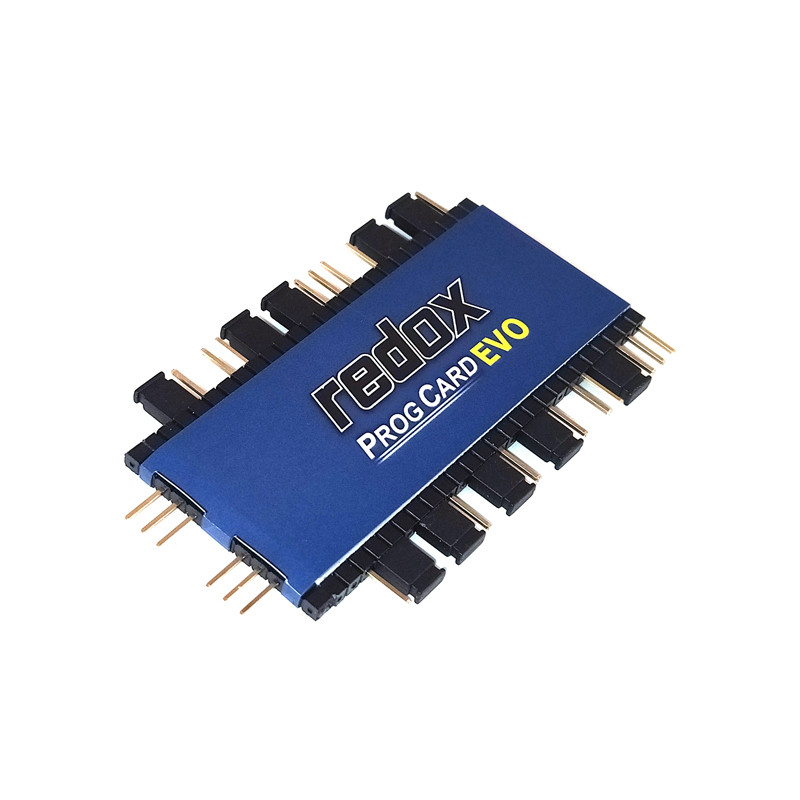

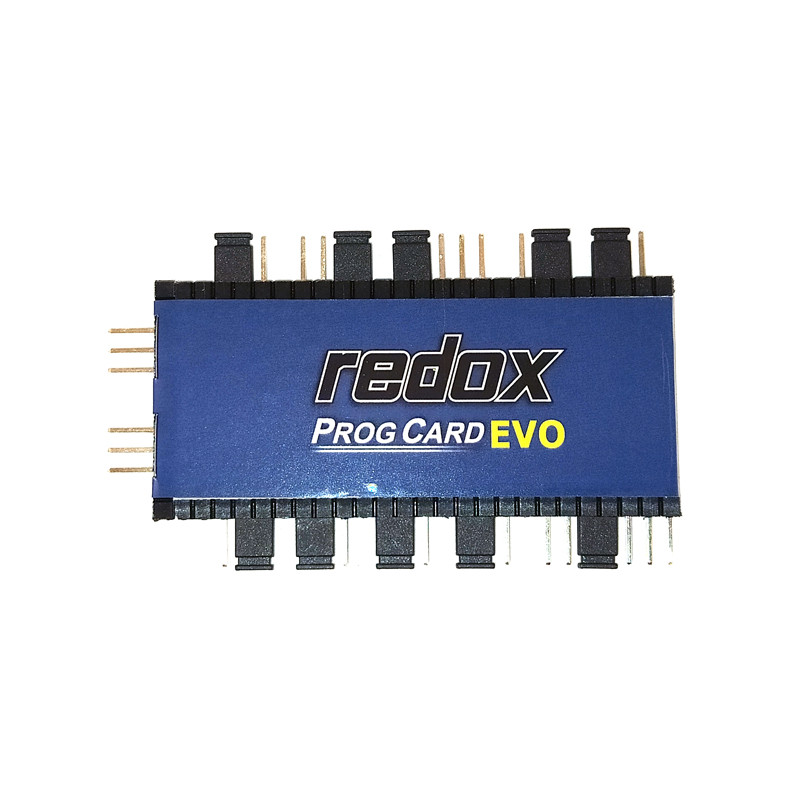

Redox programming card dedicated to Redox EVO series regulators. Thanks to the clear breakdown of programmable functions and easy-to-clip jumpers, it will quickly allow you to program a given function in the regulator, without having to enter programming mode (where options are set according to the sound key with the throttle stick). In addition, the card allows for more precise settings of given options, such as acceleration adjustment or selection of the exact angle of advance.

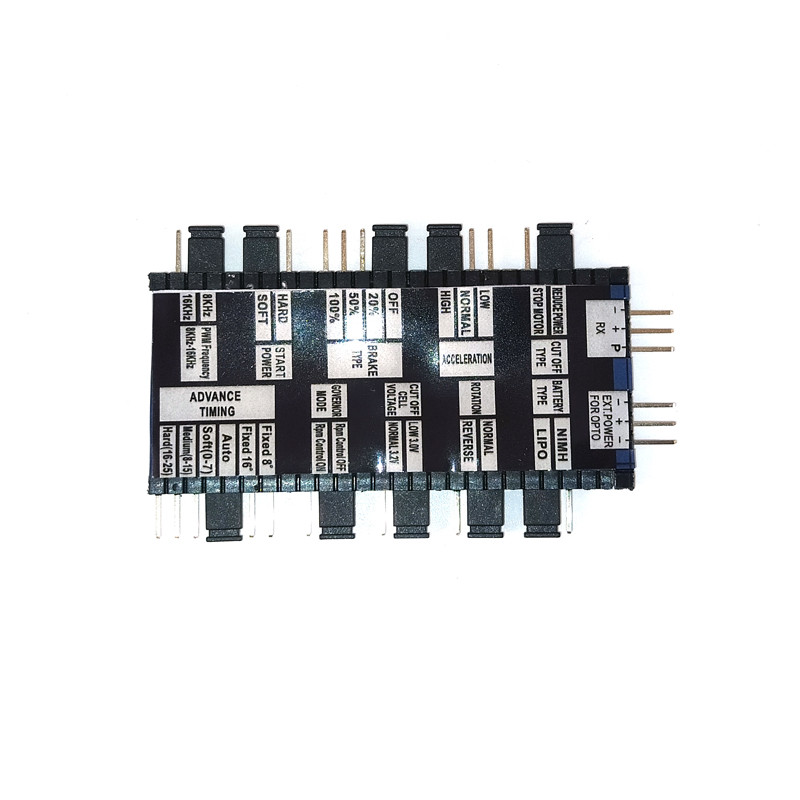

Programmable regulator modes:

• CUT OFF TYPE (Method of cutting off at low voltage): REDUCE POWER* (slow down rotation) / STOP MOTOR (stop immediately)
• ACCELERATION (acceleration): LOW (slow acceleration) / NORMAL* (proproportional to gas curve) / HIGH (fast start)
• BRAKE TYPE (brake behavior): OFF* (off) / 20% / 50% / 100%
• START POWER (gas curve): HARD* (high acceleration) / SOFT ("soft start")
• PWM Frequency (PWM frequency): 8KHz* / 16KHz
• BATTERY TYPE (battery type selection): LIPO* / NIMH
• ROTATION (direction of rotation): NORMAL* (clockwise) / REVERSE (counterclockwise)
• CUT OFF CELL VOLTAGE (power supply cut-off voltage): LOW 3.0V (cut off at 3.0V/cell) / NORMAL 3.2V* (cut off at 3.2V/cell)
• GOVERNOR MODE (governor mode for Heli): RPM CONTROL OFF* (mode off) / RPM CONTROL ON (governor mode on)
• ADVANCE TIMING (advance angle setting): FIXED 8º (fixed 8º) / FIXED 16º (fixed 16º) / AUTO* (automatic) / SOFT 0-7 (low from 0 to 7º) / MEDIUM 8-15 (medium from 8 to 15º) / HARD 16-25 (high from 16 to 25º)

  Asterisks (*) indicate default values.

*Follow the instructions included with the product.
