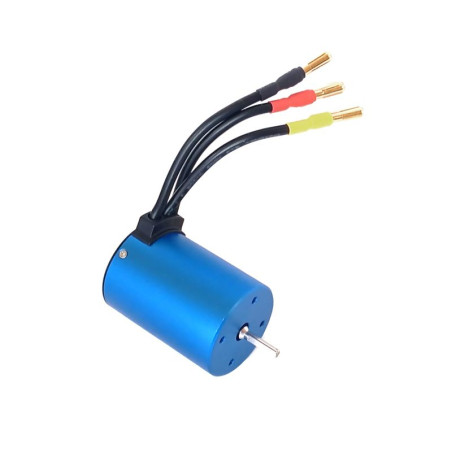

REDOX ENGINE BL IBL 540/3300

Brushless inrunner motor, Redox IBL 540/3300 - a universal motor designed primarily for model cars and motorboats, but will also be suitable for gliders. The 3300kV version is the highest-speed, highest-powered motor of all IBL 540-class motors. It generates a mighty 395W of power, which, however, comes at the cost of a slightly higher power requirement. Recommended for "sprinters" for whom speed and acceleration are more important than battery life. Also requires a more powerful regulator (we recommend 60 or even 80A).

An ideal replacement for 540 and 600 class brush motors (3.2mm shaft and 35.8mm diameter).

When used in boat models - due to the high current draw (and thus higher operating temperatures) we strongly recommend getting a dedicated Redox water jacket (water cooling) in addition.

The kit includes:

• Redox brushless motor
• 3x 4mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 395 W
• Static thrust: 680 g
• Shaft diameter: 3.2mm
• kV [rpm]: 3300
• Operating voltage: 2-4s (7.4 - 14.8V)
• No-load current consumption: 3,25 A
• Max. current consumption: 35.53 A at 7.4V
• Recommended regulator: 60-80 A
• Propeller (if used in model aircraft): APC 6x5 E
• Weight: 163 g
• Motor diameter: 35.8 mm
• Body length: 52 mm
• Possibility to use a dedicated water jacket (not included - available at this link: water cooling IBL 540)

*Follow the instruction manual included with the product.
