REDOX MOTOR BL IBL 540/2900

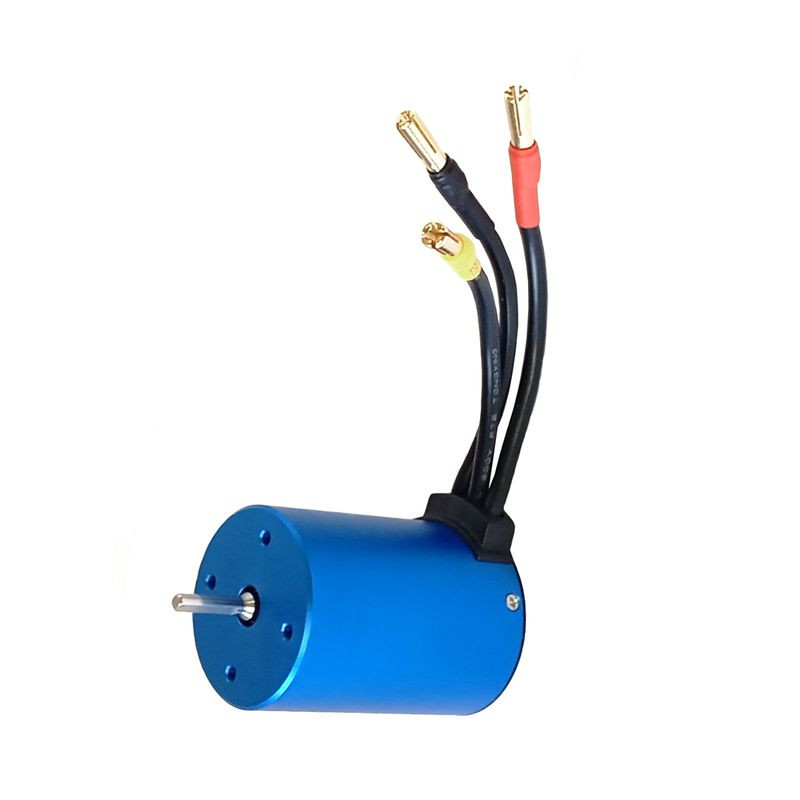

Brushless inrunner motor, Redox IBL 540/2900 - a universal motor designed primarily for model cars and motorboats, but will also be suitable for gliders. The 2900kV version is the averaged kV-index motor among the IBL 540 series motors, featuring a kind of compromise between current consumption and performance. It offers sizable power and good acceleration, while managing energy and current consumption sensibly.

An ideal replacement for 540 and 600 class brush motors (3.2mm shaft and 35.8mm diameter).

When used in boat models - we recommend getting a dedicated Redox water jacket (water cooling) in addition.

The kit includes:

• Redox brushless motor
• 3x 4mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 290 W
• Static thrust: 560 g
• Shaft diameter: 3.2 mm
• kV [rpm]: 2900
• Operating voltage: 2-4s (7.4 - 14.8V)
• No-load current consumption: 2,8 A
• Max. current consumption: 26.38 A at 7.4V
• Recommended regulator: 60-80 A
• Propeller (if used in model aircraft): APC 6x5 E
• Weight: 163 g
• Motor diameter: 35.8 mm
• Body length: 52 mm
• Possibility to use a dedicated water jacket (not included - available at this link: water cooling IBL 540)

*Follow the instruction manual included with the product.
