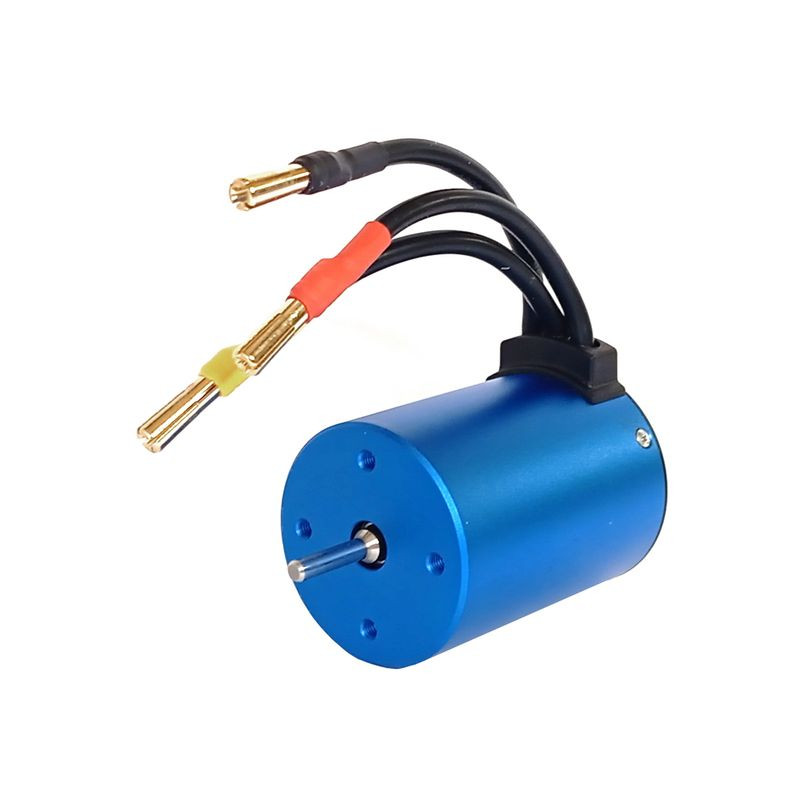

REDOX MOTOR BL IBL 540/2300

Brushless inrunner motor, Redox IBL 540/2300 - a universal motor designed primarily for car and motorboat models, but will also be suitable for gliders. The 2300kV version is the lowest kV-indexed motor among the IBL 540 series motors, while also featuring the lowest current consumption - it will be perfect where longer run time on a single battery will be more important than top speed.

An ideal replacement for 540 and 600 class brush motors (3.2mm shaft and 35.8mm diameter).

For use in boat models - we recommend getting an additional dedicated Redox water jacket (water cooling).

The kit includes:

• Redox brushless motor
• 3x 4.0mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 175 W
• Static thrust: 420 g
• Shaft diameter: 3.2mm
• kV [rpm]: 2300
• Operating voltage: 2-4s (7.4 - 14.8V)
• No-load current consumption: 2,5 A
• Max. current consumption: 15.82 A at 7.4V
• Recommended regulator: 40 A
• Propeller (if used in model aircraft): APC 6x5 E
• Weight: 163 g
• Motor diameter: 35.8 mm
• Body length: 52 mm
• Possibility to use a dedicated water jacket (not included - available at this link: water cooling IBL 540)

*Follow the instruction manual included with the product.
