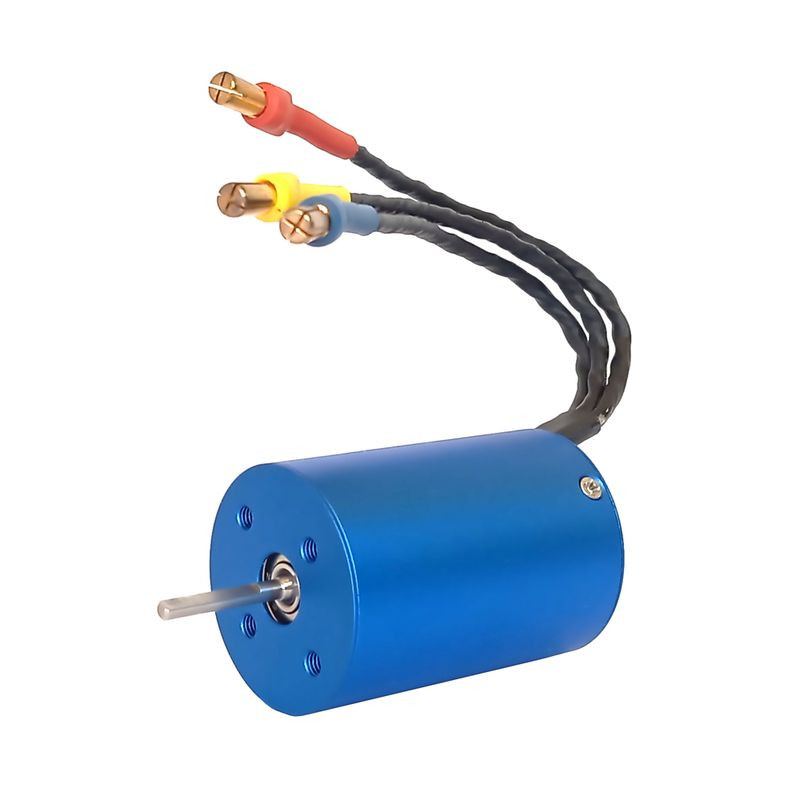

REDOX MOTOR BL IBL 380/3800

Brushless inrunner motor, Redox IBL 380/3800 - a universal motor designed primarily for model cars and motorboats, but will also be suitable for gliders. The 3800kV version is the highest-speed and highest-powered motor of all IBL 380-class motors. It generates a mighty 200W of power, which, however, comes at the expense of a slightly higher power demand. Recommended for "sprinters" for whom speed and acceleration are more important than battery life. Also requires a more powerful regulator (we recommend 40A).

An ideal replacement for 400/480 class brush motors (2.3mm shaft and 28mm diameter).

For use in boat models - due to high current draw (and thus higher operating temperatures) we strongly recommend getting a dedicated Redox water jacket (water cooling) in addition.

The kit includes:

• Redox brushless motor
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 200 W
• Static thrust: 240 g
• Shaft diameter: 2.3mm
• kV [rpm]: 3800
• Operating voltage: 2-3s (7.4 - 11.1V)
• No-load current consumption: 2,7 A
• Max. current consumption: 27.20 A at 7.4V
• Recommended regulator: 40 A
• Propeller (if used in model aircraft): APC 4.7x4.7 E
• Weight: 98 g
• Motor diameter: 28mm
• Body length: 40.2mm
• Possibility to use a dedicated water jacket (not included - available at this link: water cooling IBL 380)

*Follow the instruction manual included with the product.
