REDOX MOTOR BL 3000/ 550

Redox BL 3000/550 brushless outrunner motor - a powerful torque motor designed for reduction and training models. With 750W of power and more than 3 kg of static thrust, it will provide a huge reserve of power as well as very long flight times and comfort on larger propellers (even 16'').

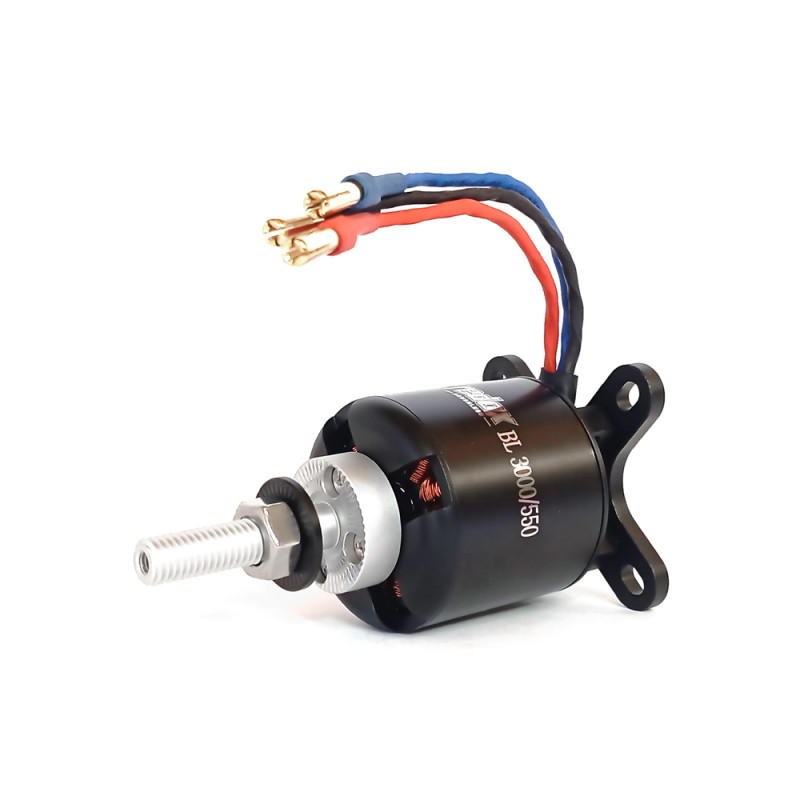

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful on models with limited ability to mount the frame for engine installation on the front of the model, or can prove ideal for push-pull models.

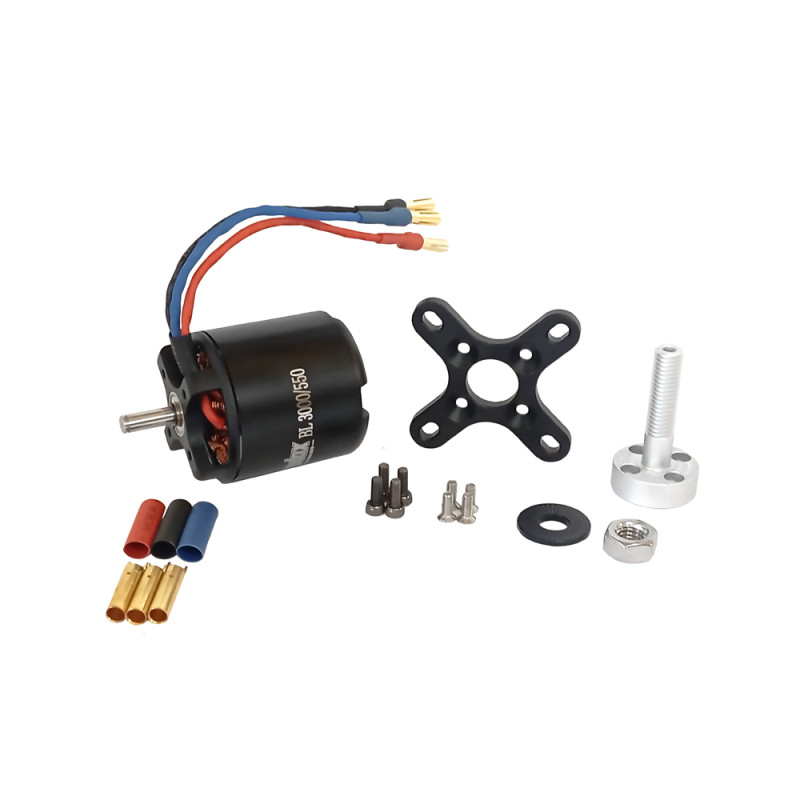

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws (62x47mm)
• M8 reverse hub
• 3x 4mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 750 W
• Static thrust: 3260 g
• Shaft diameter: 5mm
• kV [rpm]: 550
• Operating voltage: 3-4s (11.1-14.8V)
• No-load current consumption: 1,47 A
• Max. current consumption: 51.05 A at 14.8V
• Recommended regulator: 60-80 A
• Propeller: APC 16x10 E
• Weight: 269 g
• Motor diameter: 42.4mm
• Body length: 53mm
• Possibility to transfer the shaft to the other side of the body

Example configurations:

• APC propeller 15x8 E / 502.46 W / 2680 g static thrust / 33.95 A at 14.8 V
• APC propeller 16x10 E / 755.54 W / 3260 g of static thrust / 51.05 A at 14.8 V

*Follow the instruction manual included with the product.
