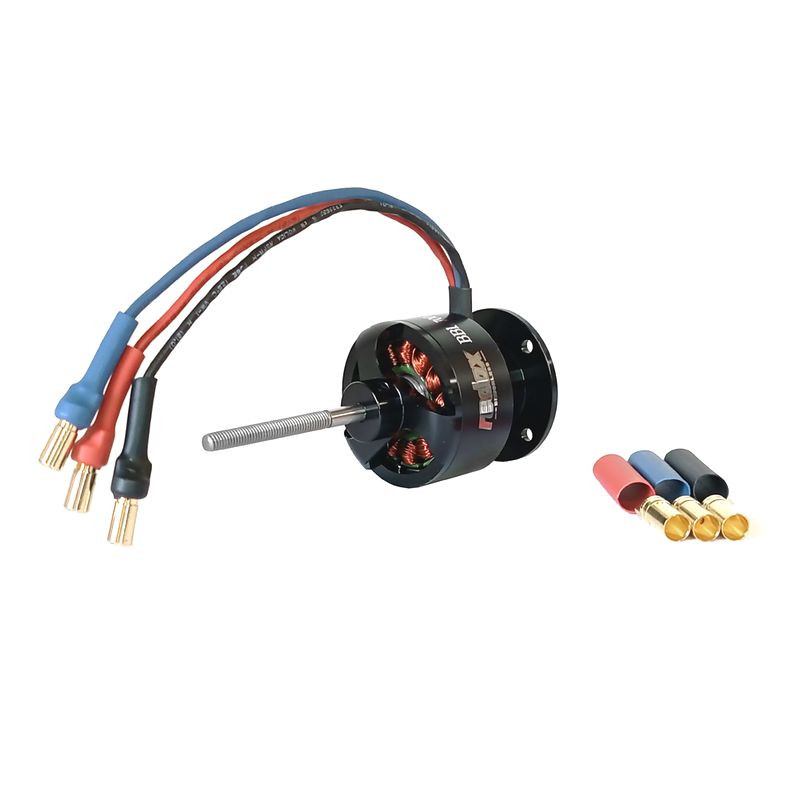

REDOX ENGINE BL BLF 700/1230

The Redox BBL 700/1230 "bell-type" brushless motor, popularly known as "bell", is a versatile motor suitable for installation in many types of model aircraft. With an empty weight of about 51g, it generates as much as 225W of power and as much as 800g of static thrust, which allows comfortable operation even with 1-1.2kg aerobatic models or even 2kg recreational models.

The kit includes:

• Redox brushless motor
• Mounting foot
• 3x banana type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 225 W
• Static thrust: 800 g
• Shaft diameter: 3mm (threaded)
• kV [rpm]: 1230
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.48A
• Max. current consumption: 20.1 A at 11.1V
• Recommended regulator: 25-30 A
• Propeller: APC 9x4.7 E
• Weight: 51 g
• Motor diameter: 28 mm
• Body length: 33 mm

*Follow the instruction manual included with the product.
