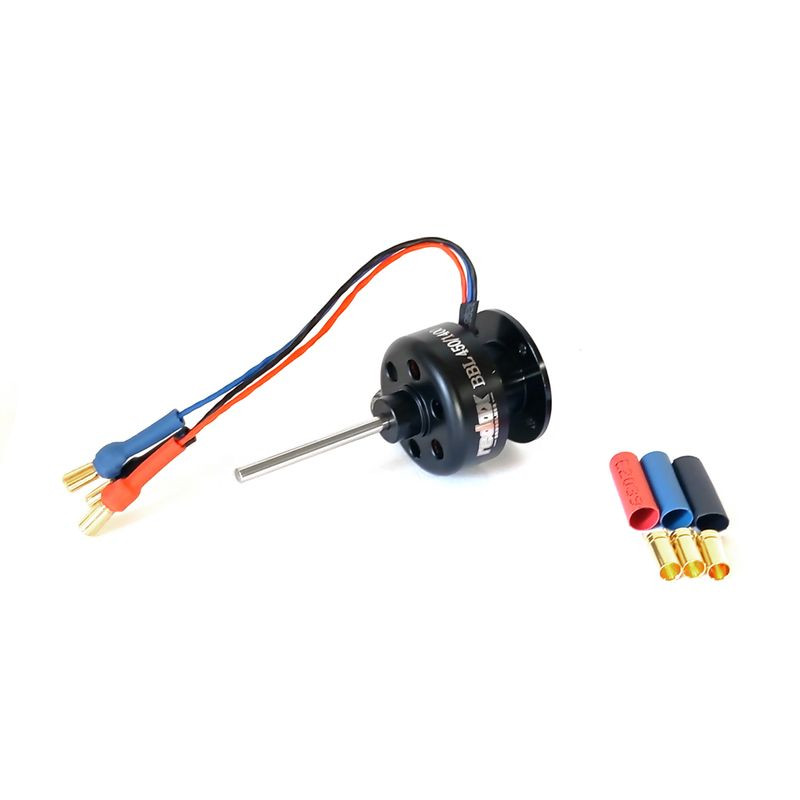

REDOX ENGINE BL BLF 450/1400

The Redox BBL 450/1400 "bell-type" brushless motor, popularly known as "bell", is a versatile motor suitable for installation in many types of model aircraft. With an empty weight of about 42g, it generates 140W of power and 560g of static thrust, allowing it to work with up to 1.8kg of upper-wing models.

The kit includes:

• Redox brushless motor
• Mounting foot
• 3x banana-type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 140 W
• Static thrust: 560 g
• Shaft diameter: 3mm (smooth)
• kV [rpm]: 1400
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.63A
• Max. current consumption: 12.45 A at 11.1V
• Recommended regulator: 15-20 A
• Propeller: APC 8x4 E
• Weight: 42 g
• Motor diameter: 28mm
• Body length: 29mm

*Follow the instruction manual included with the product.
