REDOX ENGINE BL BLF 500/ 950

The Redox BBL 500/950 "bell-type" brushless motor, popularly known as "bell", is a versatile motor suitable for installation in many types of model aircraft. With an empty weight of about 44g, it generates 95W of power and 400g of static thrust, allowing it to work even with models of more than a kilogram. It features low power consumption and the ability to work with larger propellers - strongly recommended for free-flying, training and recreational models.

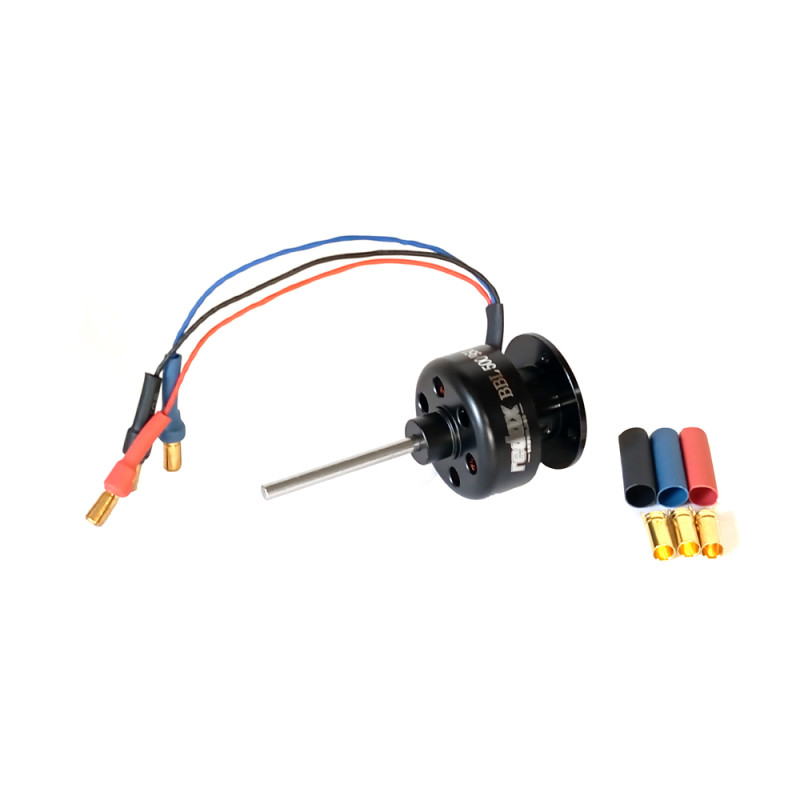

The kit includes:

• Redox brushless motor
• Mounting foot
• 3x banana type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 95 W
• Static thrust: 400 g
• Shaft diameter: 3mm (smooth)
• kV [rpm]: 950
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.35 A
• Max. current consumption: 8.52 A at 11.1V
• Recommended regulator: 10-15 A
• Propeller: APC 9x4.7 E
• Weight: 44 g
• Motor diameter: 28mm
• Body length: 29mm

*Follow the instruction manual included with the product.
