REDOX ENGINE BL BLF 420/1400

A compact BLF series engine, the Redox BLF 420/1400 is a versatile propulsion unit for all kinds of lightweight foam aerobatic models. It features a flattened housing, compact dimensions and low weight. The relatively high RPM (1400 kV) will work especially well for 3D models and even gliders or fast small pylon aircraft.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful on models with limited ability to mount the frame for engine installation at the front of the model, or it can prove ideal for push-pull models.

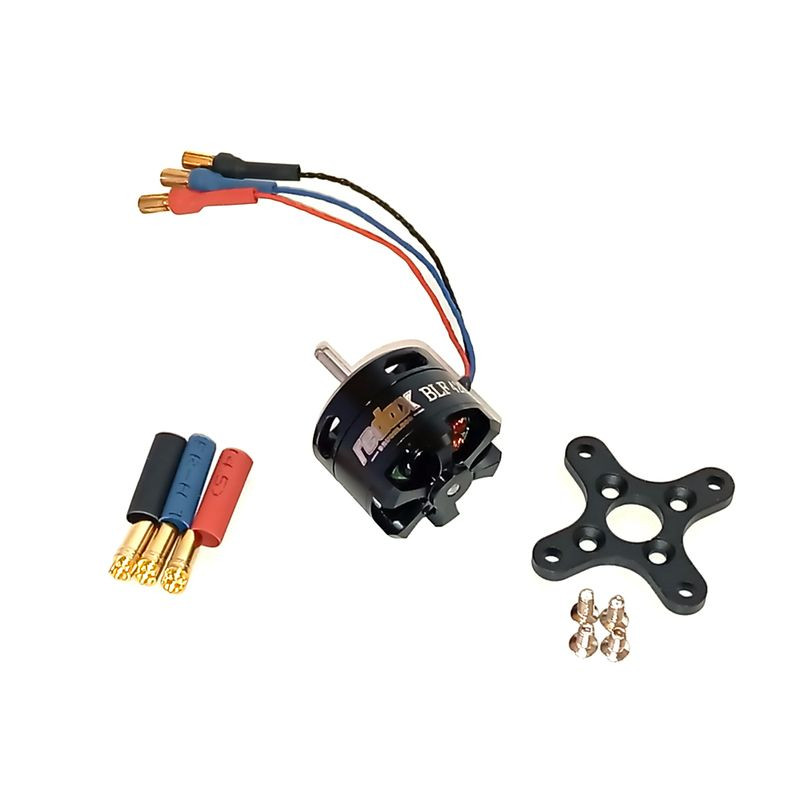

The kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws
• 3x banana type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 145 W
• Static thrust: 540 g
• Shaft diameter: 3mm
• kV [rpm]: 1400
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.64A
• Max. current consumption: 13.10 A at 11.1V
• Recommended regulator: 15-20 A
• Propeller: APC 8x4 E
• Weight: 37 g
• Motor diameter: 27.8mm
• Body length: 24mm
• Possibility to transfer the shaft to the other side of the body

We also recommend an optional dedicated reverse hub for the motor (available at this link: BLF reverse hub)

*Follow the instruction manual included with the product.
