REDOX MOTOR BLF 420/1000

A compact BLF series engine, the Redox BLF 420/1000 is a versatile propulsion unit for all kinds of lightweight foam aerobatic models. It features a flattened housing, compact dimensions and low weight. Operation with up to 10-inch propellers and low power consumption give many possibilities for appropriate profiling of the propulsion kit, depending on the type of model used.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove particularly helpful on models with limited ability to mount the frame for motor installation on the front of the model, or it can prove ideal for push-pull models

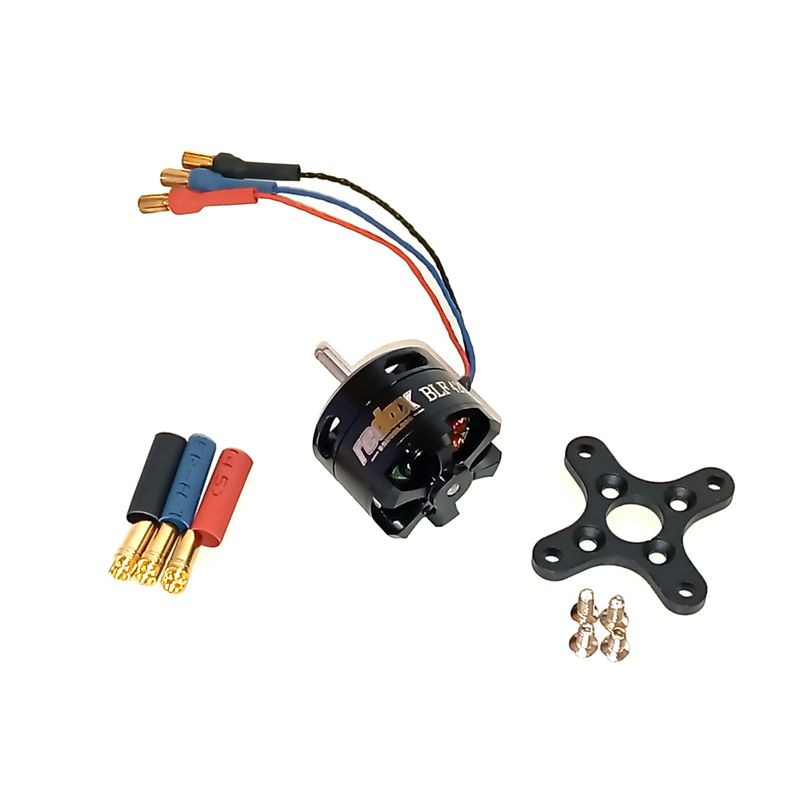

Kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws
• 3x banana type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 130 W
• Static thrust: 500 g (APC 9x4.7E) / 560 g (APC 10x5E)
• Shaft diameter: 3mm
• kV [rpm]: 1000
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.39A
• Max. current consumption: 11.2 A at 11.1V and 9x4.7E / 12.02 A at 11.1V and 10x5E
• Recommended regulator: 15-20 A
• Propeller: APC 9x4.7E - 10x5E
• Weight: 38 g
• Motor diameter: 27.8mm
• Body length: 24mm
• Possibility to transfer the shaft to the other side of the body

We also recommend an optional dedicated reverse hub for the motor (available at this link: BLF reverse hub)

*Follow the instruction manual included with the product.
