REDOX ENGINE BL BLF 350/1350

A compact BLF series engine, the Redox BLF 350/1350 is a versatile drive unit for all kinds of lightweight foam aerobatic models. It features a flattened housing, compact dimensions and low weight. Operation with up to 9-inch propellers and low power consumption give many possibilities for appropriate profiling of the propulsion kit, depending on the type of model used.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove particularly helpful on models with limited ability to mount the frame for motor installation on the front of the model, or it can prove ideal for push-pull models

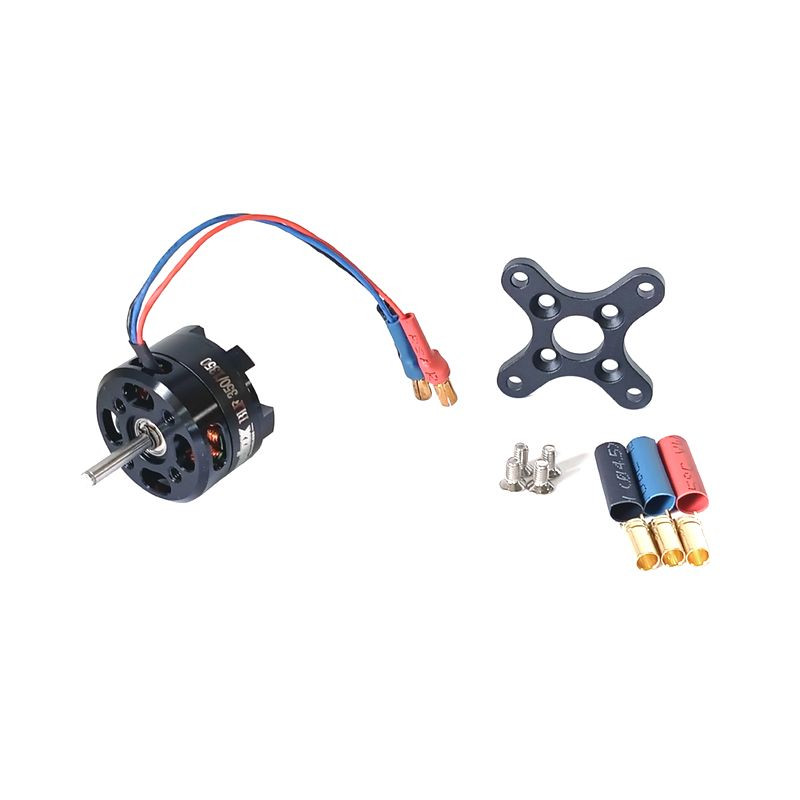

Kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws (41x31.4mm)
• 3x banana type connector - 3.5mm socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 120 W
• Static thrust: 310 g
• Shaft diameter: 3mm
• kV [rpm]: 1350
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.51A
• Max. current consumption: 10.7 A at 11.1V
• Recommended regulator: 15-20 A
• Propeller: APC 9x4 E
• Weight: 30 g
• Motor diameter: 27.8mm
• Body length: 22mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
