REDOX ENGINE BL 3000/ 700

Redox BL 3000/700 brushless outrunner motor - a powerful torque motor designed for reduction and training models. With 830W of power and 3-kilogram static thrust, it will provide a huge reserve of power as well as very long flight times and comfort on larger propellers, even for 6-8-kilogram models.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove particularly helpful on models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-powered models.

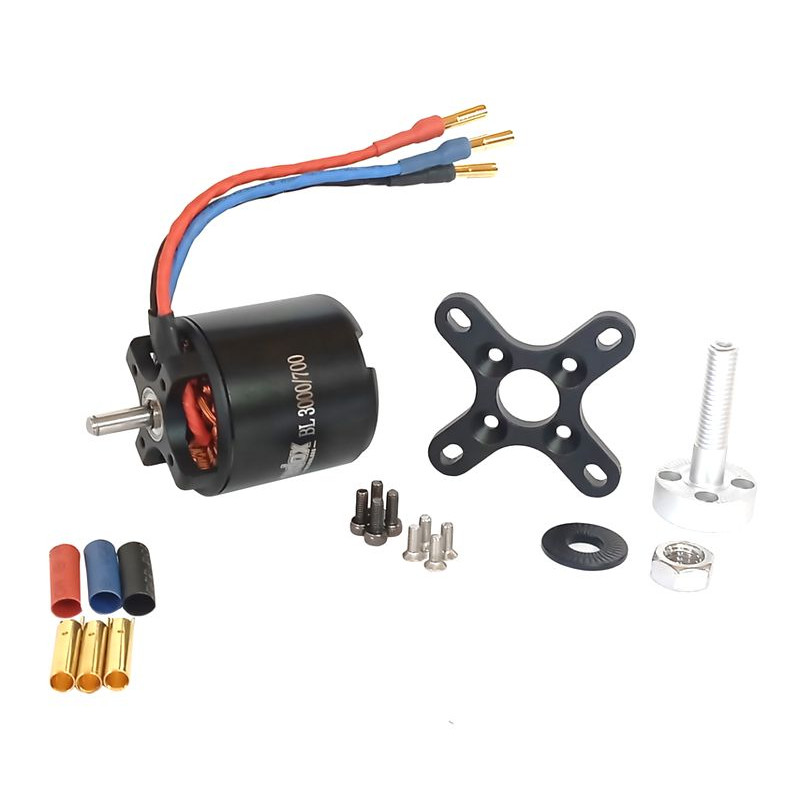

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws
• M8 reverse hub
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 830 W
• Static thrust: 3000 g
• Shaft diameter: 5mm
• kV [rpm]: 700
• Operating voltage: 3-4s (11.1-14.8V)
• No-load current consumption: 1,77 A
• Max. current consumption: 56.10 A at 14.8V
• Recommended regulator: 80 A
• Propeller: APC 14x8 E
• Weight: 273 g
• Motor diameter: 42.4mm
• Body length: 53mm
• Possibility to transfer the shaft to the other side of the body

Example configurations:

• APC propeller 14x8 E / 830.28 W / 3000 g of static thrust / 56.10 A at 14.8 V
• APC 14.7 E propeller / 648.24 W / 2800 g static thrust / 43.80 A at 14.8 V

*Follow the instruction manual included with the product.
