REDOX ENGINE BL 2600/ 600

Redox BL 2600/600 brushless outrunner motor - a low-speed, powerful torque motor designed for reduction and training models. With a power output of 690W and more than 2.5 kilograms of static thrust, it will provide a huge reserve of power as well as very long flight times and comfort on larger propellers, even for 5-6 kilogram models.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful on models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-powered models.

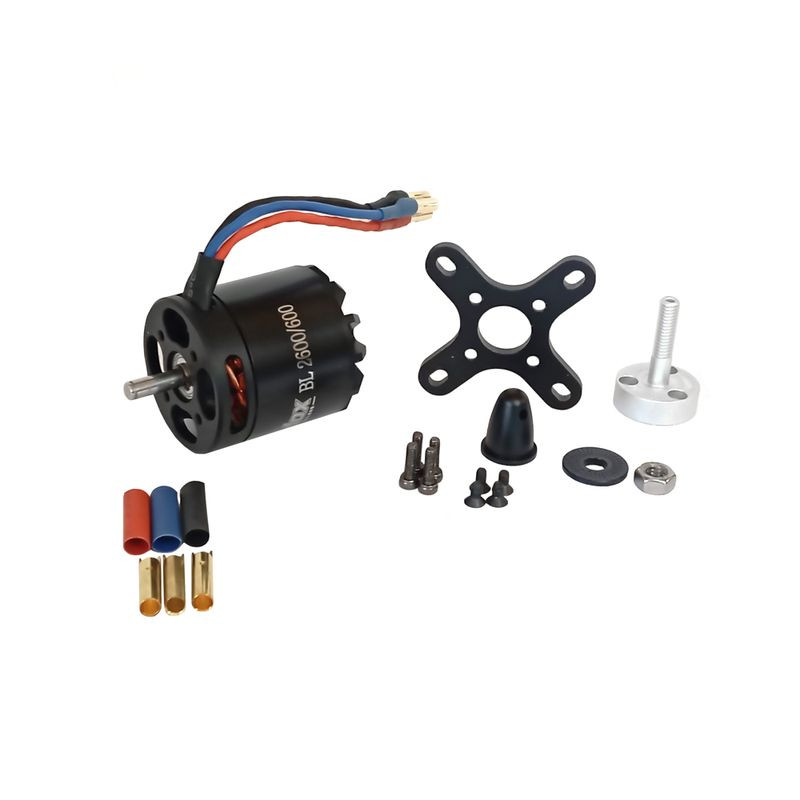

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws
• M6 reverse hub
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 690 W
• Static thrust: 2540 g
• Shaft diameter: 5mm
• kV [rpm]: 600
• Operating voltage: 3-4s (11.1-14.8V)
• No-load current consumption: 1,25 A
• Max. current consumption: 46.80 A at 14.8V
• Recommended regulator: 60 A
• Propeller: APC 13x8 E
• Weight: 246 g
• Motor diameter: 42.4mm
• Body length: 50mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
