REDOX ENGINE BL 2500/1000

The Redox BL 2500/1000 brushless outrunner motor is a versatile, wide-purpose motor that will work well in high-speed aerobatic models, as well as in reduction models or trainers. Powerful power (740 W) and high thrust (more than 2.5kg) at the same time with relatively low power consumption and compact dimensions will make the motor suitable for any type of models weighing from 2.5 to even 6kg, depending on your needs.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this may prove particularly helpful on models with limited ability to mount the frame for the motor installation on the front of the model, or may prove ideal for push-powered models.

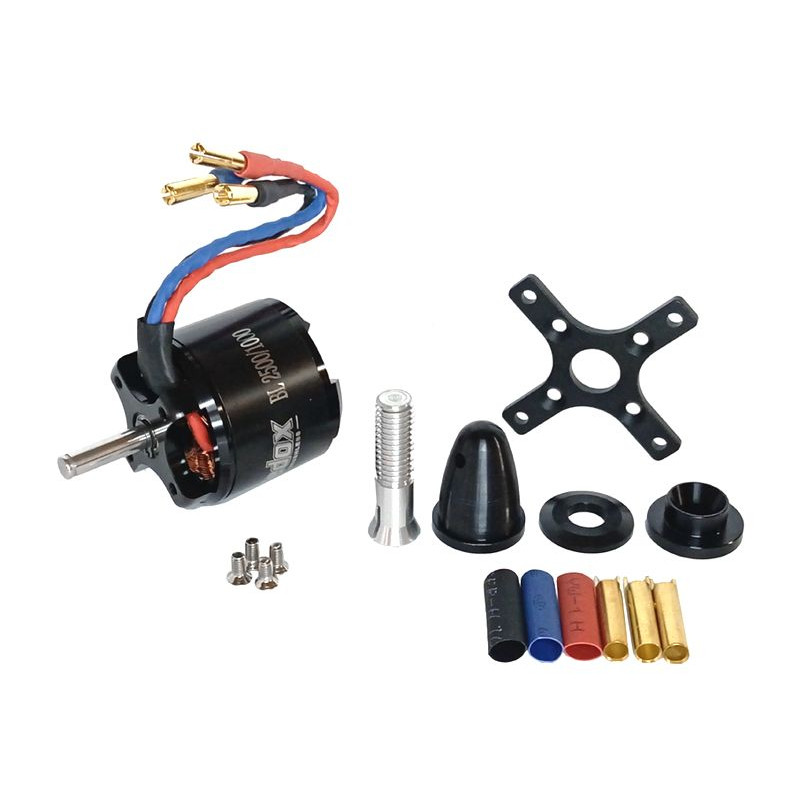

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws (51.6x40.5mm)
• M8 hub (for 5mm axle) with hubcap
• 3x 4mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 740 W
• Static thrust: 2580 g
• Shaft diameter: 5mm
• kV [rpm]: 1000
• Operating voltage: 4-6s (14.8 - 22.2V)
• No-load current consumption: 2,93 A
• Max. current consumption: 49.80 A at 14.8V
• Recommended regulator: 60-80 A
• Propeller: APC 11x5.5 E
• Weight: 146 g
• Motor diameter: 37mm
• Body length: 40.8mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
