REDOX ENGINE BL 2500/ 850

Redox BL 2500/850 brushless outrunner motor - a powerful, low-speed motor that will be ideal for large reduction and recreational models. Generating 600W of power and more than 2.1 kg of static thrust, the motor will effectively propel even 4-kilogram high-wing models, providing very long flight times and a considerable amount of power at the throttle.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful on models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-pull models.

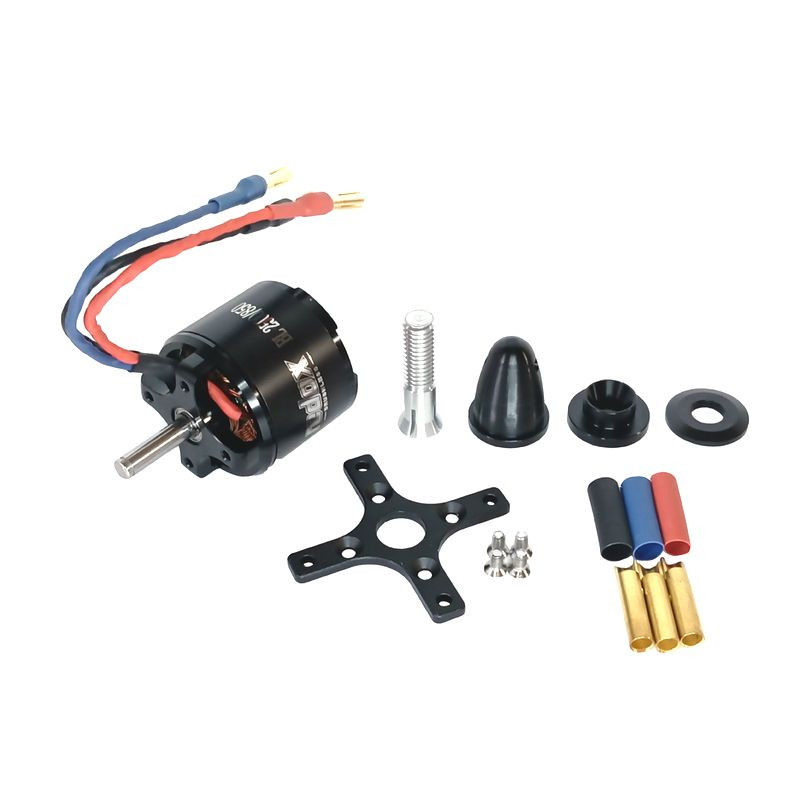

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws
• M8 reverse hub
• 3x 4mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 600 W
• Static thrust: 2160 g
• Shaft diameter: 5mm
• kV [rpm]: 850
• Operating voltage: 4-6s (14.8-22.2V)
• No-load current consumption: 2,18 A
• Max. current consumption: 40.77 A at 14.8V
• Recommended regulator: 60 A
• Propeller: APC 11x7 E
• Weight: 147 g
• Motor diameter: 37mm
• Body length: 40.8mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
