REDOX ENGINE BL 1500/1350

The classic Redox BL 1500/1350 outrunner is profiled as the "fastest" of the Redox BL 1500 series motors. The high RPM (1350 kV) will be ideal for fast, maneuverable, power-intensive and lightning-fast aerobatic models. The motor will be ideal for models weighing about 1.8 - 2.3 kg, giving the modeler a powerful reserve of power and extensive capabilities in the air, even in the most demanding aerobatics.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining a "reverse mount" option - this can prove especially helpful in models with limited ability to mount the frame for engine installation on the front of the model, or can prove ideal for push-pull models.

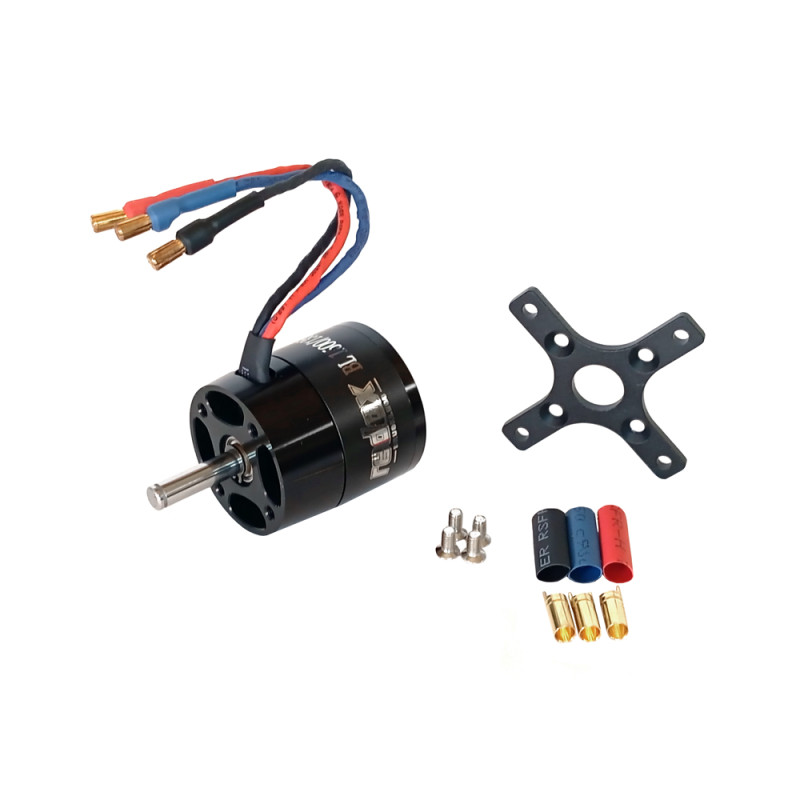

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 500 W
• Static thrust: 1800 g
• Shaft diameter: 5mm
• kV [rpm]: 1350
• Operating voltage: 2-4s (7.4-14.8V)
• No-load current consumption: 2,66 A
• Max. current consumption: 45.15 A at 11.1V
• Recommended regulator: 60 A
• Propeller: APC 11x5.5 E
• Weight: 108 g
• Motor diameter: 34.4mm
• Body length: 41.2mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
