REDOX MOTOR BL 1500/1000

The classic Redox BL 1500/1000 outrunner is the "slowest" of the three Redox BL 1500 series motors. The low RPM translates into high torque and relatively low current draw, making the 1500/1000 motor ideal for reduction models and trainers - aimed at stable, long flights. 420W of power and more than 1.5kg of static thrust gives the modeler many options in terms of propeller selection and also the comfort of a high power reserve.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this can prove especially helpful in models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-powered models.

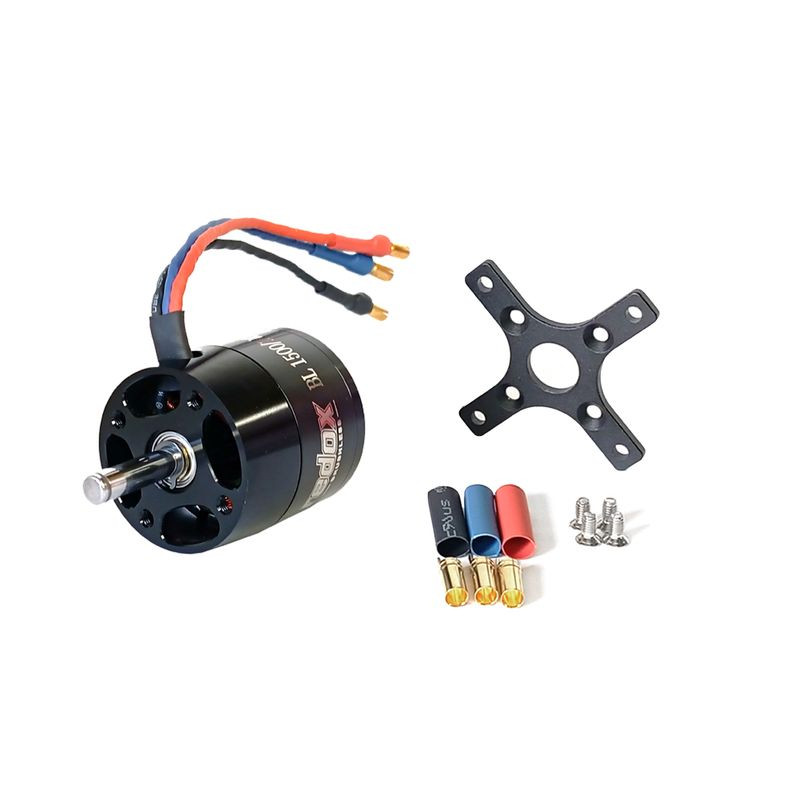

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 420 W
• Static thrust: 1560 g
• Shaft diameter: 5mm
• kV [rpm]: 1000
• Operating voltage: 2-4s (7.4-14.8V)
• No-load current consumption: 1,65 A
• Max. current consumption: 37.8 A at 11.1V
• Recommended regulator: 60 A
• Propeller: APC 12x6 E
• Weight: 107 g
• Motor diameter: 34.4mm
• Body length: 41.2mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
