REDOX ENGINE BL 1200/1300

The classic Redox BL 1200/1300 outrunner is a versatile 450-Watt three-phase motor generating more than 1.5 kg of static thrust. RPM of kV 1300 will allow efficient operation in both training and aerobatic models (however, with an emphasis on models with higher cruising speed). It is suitable primarily for aerobatic and high-speed reduction models weighing about 1.5 - 2.5 kg, but will also work well for trainers weighing up to 3-3.5 kg. The short engine body is very useful when you need to hide it under the hood in a tight fuselage.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this can prove especially helpful on models with limited ability to mount the frame for engine installation at the front of the model, or it can prove ideal for push-pull models.

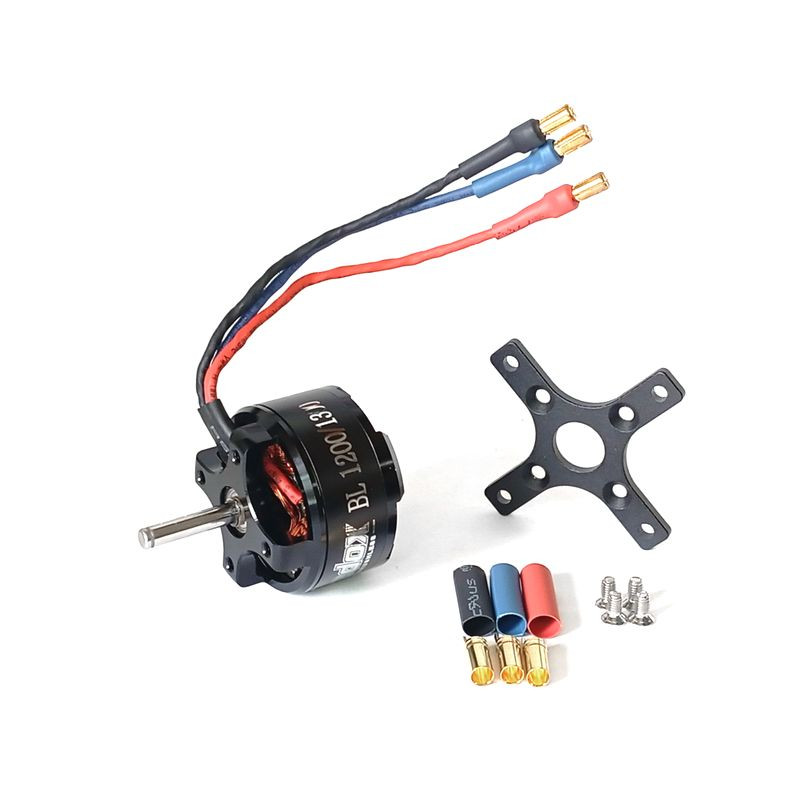

The kit includes:

• Redox brushless motor
• Large mounting bed with 4 screws (51.5x40.5mm)
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 450 W
• Static thrust: 1520 g
• Shaft diameter: 4mm
• kV [rpm]: 1300
• Operating voltage: 2-4s (7.4-14.8V)
• No-load current consumption: 1,8 A
• Max. current consumption: 40.23 A at 11.1V
• Recommended regulator: 60 A
• Propeller: APC 10x6 E
• Weight: 82 g
• Motor diameter: 37mm
• Body length: 30mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
