REDOX ENGINE BL 900/1200

The classic Redox BL 900/1200 outrunner is a faster, highly versatile variant of the "900" line of motors, with a power output of about 265 watts and generating about 900 g of static thrust. The relatively low current consumption will ensure satisfactory flight times, and the kV 1200 speed will allow efficient operation in both training and aerobatic models.

In addition, the motor has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this can prove particularly helpful in models with limited ability to mount the frame for engine installation on the front of the model, or can prove ideal for push-pull models.

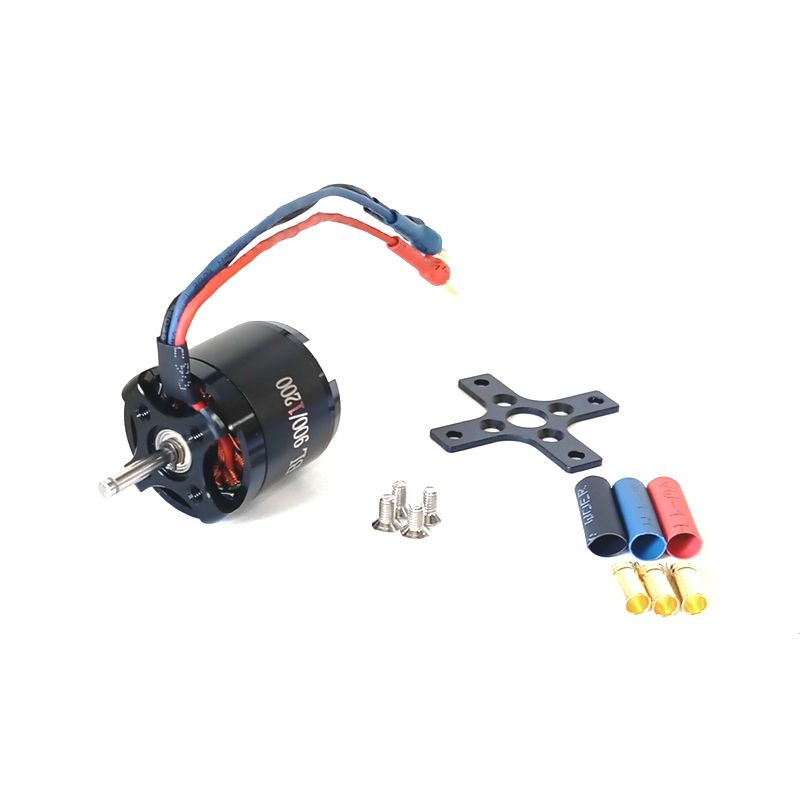

The kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws (40x33mm)
• 3x 3.5mm banana type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 265 W
• Static thrust: 900 g
• Shaft diameter: 3mm
• kV [rpm]: 1200
• Operating voltage: 2-4s (7.4-14.8V)
• No-load current consumption: 0.98 A
• Max. current consumption: 17.92 A at 14.8V
• Recommended regulator: 20-30 A
• Propeller: APC 7x4 E
• Weight: 63 g
• Motor diameter: 28mm
• Body length: 34.7mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
