REDOX ENGINE BL 500/1000

The classic Redox BL 500/1000 outrunner is a "mild-mannered" engine that gives the modeler the good torque needed to fly training or reduction models, while offering a very moderate energy appetite - which translates into a very long time to keep the model in the air. Offering about 500 g. of static thrust, the unit with 1000 kV will be ideal for reduction models, trainers, upper-wing and lower-wing models with larger wing area (weighing as much as 1.0 kg), guaranteeing long and stable flights, with a relatively large torque reserve.

In addition, the engine has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this can prove particularly helpful in models with limited ability to mount the frame for engine installation at the front of the model, or it can prove ideal for push-pull models.

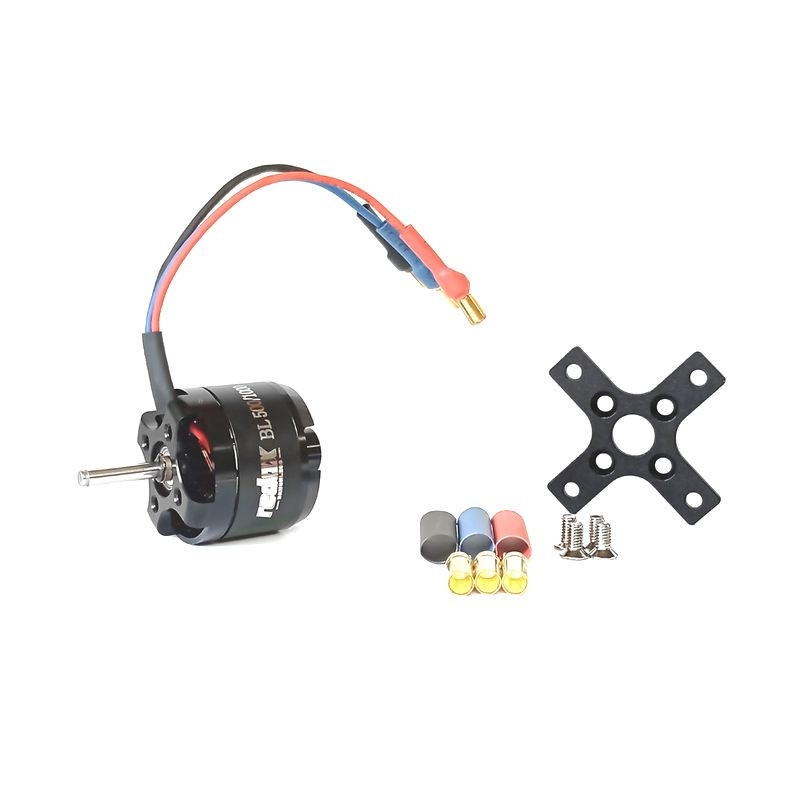

The kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws
• 3x banana-type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 130 W
• Static thrust: 500 g
• Shaft diameter: 3mm
• kV [rpm]: 1000
• Operating voltage: 2-3s (7.4-11.1V)
• No-load current consumption: 0.6A
• Max. current consumption: 11.5 A at 11.1V
• Recommended regulator: 15-20 A
• Propeller: APC 7x6 E ~ 9x5 E
• Weight: 47 g
• Motor diameter: 28mm
• Body length: 29.9mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
